01.Product Description

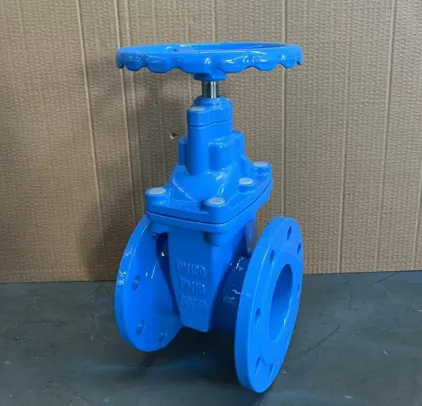

Qhov no ductile hlau nce-stem rooj vag valve yog tsim rau pipeline on-off tswj. qia txav vertically ua ke nrog lub rooj vag phaj thaum koj ua haujlwm ntawm chav tsev. Cov neeg ua haujlwm hauv teb tuaj yeem txiav txim ncaj qha qhib-kaw raws li txoj cai los ntawm kev soj ntsuam qia mus los ntawm sab nraud.
Stem lubrication ua ncaj nraim nrog cov qauv no. Cov lus qhia meej txog txoj haujlwm txiav kev ua haujlwm yuam kev, yog li cov kws tshaj lij xaiv lub valve no rau ntau qhov xwm txheej sib txawv.
02.Product Specifications
RISING STEM RESILIENT SEAT GATE VALVE
| Main Sab Nraud thiab Kev Sib Txuas Dimension | ||||||||||||||
| DN | OUTLINE (mm) | Xaus Flange PN10/16-CL125/150 | ||||||||||||
| SIB 5163 | DIN F4 |
DIN F5 |
ASME B16.10 |
TIAB SA 2638 | TS EN 1092-2 | ASME B16.1/B16.42 | TIAB SA 4087 n-d |
|||||||
| L | D | K | n-d | D | K | n-d | D | K | n-d | |||||
| 40 | 165 | 140 | 240 | - | 150 | 110 | 4-Φ19 | 127 | 98.5 | 4-Φ16 | - | - | - | |
| 50 | 178 | 150 | 250 | 178 | - | 165 | 125 | 4-Φ19 | 152 | 120.5 | 4-Φ19 | - | - | |
| 65 | 901 | 170 | 270 | 190 | - | 185 | 145 | 4-Φ19 | 178 | 139.5 | 4-Φ19 | - | - | |
| 80 | 203 | 180 | 280 | 203 | 203 | 200 | 160 | 8-Φ19 | 191 | 152.5 | 4-Φ19 | 185 | 146 | 4-Φ18 |
| 100 | 229 | 190 | 300 | 229 | 229 | 220 | 180 | 8-Φ19 | 229 | 190.5 | 8-Φ19 | 215 | 178 | 4-Φ18 |
| 125 | 254 | 200 | 325 | 254 | - | 250 | 210 | 8-Φ19 | 254 | 216 | 8-Φ22 | - | - | |
| 150 | 267 | 210 | 350 | 267 | 267 | 285 | 240 | 8-Φ23 | 279 | 241.5 | 8-Φ22 | 280 | 235 | 8-Φ18 |
| 200 | 292 | 230 | 400 | 292 | 292 | 340 | 295 | 8-Φ2312-Φ23 | 343 | 298.5 | 8-Φ22 | 335 | 292 | 8-Φ18 |
| 250 | 330 | 250 | 450 | 330 | 330 | 395/405 | 350/355 | 12-Φ2312-Φ28 | 406 | 362 | 12-Φ25 | 405 | 356 | 8-Φ22 |
| 300 | 356 | 270 | 500 | 356 | 356 | 445/460 | 400/410 | 12-Φ2312-Φ28 | 483 | 432 | 12-Φ25 | 455 | 406 | 12-Φ22 |
| 350 | 381 | 290 | 550 | 381 | 381 | 505/520 | 460/470 | 16-Φ2316-Φ28 | 533 | 476 | 12-Φ28 | 525 | 470 | 12-Φ25 |
| 400 | 406 | 310 | 600 | 406 | 406 | 565/580 | 515/525 | 16-Φ2816-Φ31 | 597 | 540 | 16-Φ28 | 580 | 521 | 12-Φ26 |
| 450 | 432 | 330 | 650 | 432 | 432 | 615/640 | 565/585 | 20-Φ2820-Φ31 | 635 | 578 | 16-Φ32 | 640 | 584 | 12-Φ26 |
| 500 | 457 | 350 | 700 | 457 | 457 | 670/715 | 620/650 | 20-Φ2820-Φ34 | 699 | 635 | 20-Φ32 | 705 | 641 | 16-Φ26 |
| 600 | 508 | 390 | 800 | 508 | 508 | 780/840 | 725/770 | 20-Φ3120-Φ37 | 813 | 749 | 20-Φ35 | 825 | 756 | 16-Φ30 |
ELASTIC SEAT SEALGATE VALVE
| Main Sab Nraud thiab Kev Sib Txuas Dimension | |||||||||
| PN10 | |||||||||
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|
| L | 250 | 270 | 280 | 300 | 325 | 350 | 400 | 450 | 500 |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 |
| H | 215 | 245 | 285 | 320 | 360 | 415 | 445 | 585 | 670 |
| C | 160 | 180 | 200 | 200 | 250 | 250 | 280 | 320 | 350 |
| NP16 | |||||||||
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 250 | 270 | 280 | 300 | 325 | 350 | 400 | 450 | 500 |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
| H | 215 | 245 | 285 | 320 | 360 | 415 | 480 | 585 | 670 |
| C | 160 | 180 | 200 | 200 | 250 | 250 | 280 | 320 | 350 |
03.Product Cov yam ntxwv
qia zaum raug sab nraud valve vaj tse. Cov neeg ua haujlwm tuaj yeem saib ncaj qha mus rau qhov chaw mus ncig. Qhov kev kuaj pom no pab kom tsis txhob ua haujlwm tsis raug, yog vim li cas lub valve no tau xaiv dav dav rau kev tiv thaiv hluav taws xob ua haujlwm.
Stem txiv ntoo mounts ntawm lub kaus mom los yog sab saum toj bracket. Nws nyob twj ywm sib cais los ntawm cov txheej txheem kua. Cov neeg saib xyuas tuaj yeem ua lubrication tau yooj yim, qhov no txuas ntxiv kev pabcuam lub neej rau kev txav mus rau sab hauv.
Ib qho kev txwv tsim nyog sau cia. Stem taug kev nce siab thaum qhib. Tag nrho qhov siab nce ntau. Koj yuav tsum khaws nyiaj siv ua haujlwm txaus txaus. Nws tsis yog qhov kev xaiv zoo tshaj plaws rau compact underground valve pits nrog tsawg chav ntsug.
04.Product Ua Haujlwm
|
Rotate handwheel, nws tsav threaded khub ntawm handwheel thiab qia. Lub rooj vag phaj txuas nrog qia txav nce lossis nqis kom ua tiav qhov qhib thiab kaw. Self-sealing type rising-stem gate valve nyob ntawm nruab nrab siab rau sealing. Cov kua dej siab thawb lub rooj vag sealing nto nruj tiv thaiv lub rooj zaum rau kev kaw. Feem ntau cov rooj vag li qub tau txais kev teeb tsa yuam kev. Sab nraud kev khiav hauj lwm quab yuam nias lub rooj vag phaj rau ntawm lub rooj zaum kom lav lub kaw ntom nti nyob rau hauv qhov chaw kaw. |
05.Product Showcase
06.Cov khoom siv
Qhov no ductile hlau nce-stem rooj vag valve muab kev sib cais rau dej, roj, roj av thiab lwm yam dej ua haujlwm. Koj tuaj yeem pom nws siv dav hauv tshuaj lom neeg, petrochemical, hauv nroog dej-muab-kua dej, nrog rau cov dej hauv pej xeem thiab cov kav dej phwj tuaj.
Cov phiaj xwm kev lag luam feem ntau yog siv lub valve no rau kev kaw cov kav dej thiab cov dej ntws cais tawm.
Nyob rau hauv cov phiaj xwm pej xeem, nws tswj hwm kev tswj hwm ntawm cov kav dej hauv tsev.
