Khoom Description
Peb tsim no flanged rooj vag valve ntawm precision casting txheej txheem. Cov vaj tsev tiav tiav tuaj nrog cov npoo du, tsis muaj cov xuab zeb qhov thiab qhov tsis xws luag. Tag nrho cov khoom sab hauv mus txog CNC tshuab dhos machining. Ob-txheej txhaj tshuaj blasting yuav tau ua thaum nto machining ua tiav.
Lub rooj zaum txais 13% chromium stainless hlau cov khoom, nqa cov khoom hnav-tiv taus. Kev sib cuag lub ntsej muag ntawm lub kaus mom thiab qia tau txais kev kho qhov sib khi, uas ua rau muaj kev cuam tshuam nruab nrab ntawm qhov sib koom ua ke. qia tau txais cyclone milling ua. Qhov tshwj xeeb machining no tsis txhob muaj zog los yog daig txav thaum lub valve qhib thiab kaw haujlwm.
Technical Specifications
|
参数项目 |
Lus Askiv Description |
|
Hom Valve |
Flanged Rooj vag Valve |
|
Khoom siv lub cev |
Hlau Hlau QT450-10 |
|
Nominal Dia |
DN50-DN1200 |
|
Qib Siab |
PN10 / PN16 / PN25 |
|
Flange Txheem |
EN1092-2, ISO7005-2 |
|
Khoom siv foob |
EPDM Roj Hmab |
|
Hom kev ua haujlwm |
Handwheel / Gear / Electric |
|
Txheej |
Sab hauv thiab Sab Nraud FBE Txheej |
|
Test Standard |
GB / T13927, ISO5752 |
|
Nruab nrab |
Dej huv, hluav taws kub, dej phwj tuaj |
|
Kev Pabcuam Temp |
0 ~ 80 degree |
|
qauv |
parameter |
|
Lub cev valve |
Siab -Toughness Iron QT450-10 |
|
Qe |
2Cr13 Stainless hlau |
|
Mos Foob Gasket |
Dej haus qib EPDM Roj Hmab |
|
Sab hauv txheej |
FBE Fusion Bonded Epoxy Txheej |
|
Mos Seated Gate Valve (Sab hauv Ntsia Hlau / Sab Nraud Ntsia Hlau) |
Zero to, tshwj xeeb tshaj yog rau cov dej hauv nroog thiab kev tiv thaiv hluav taws |
|
Hlau Rooj Rooj vag Valve |
Kub kub tsis kam, haum rau cov dej phwj tuaj thiab kev lag luam xov xwm |
Ntsiab nta
Full-bore design txiav down flow resistance
Tsis muaj qhov protruding nyob rau hauv ntws channel thaum lub rooj vag qhib tag nrho. Nws tsim tsis tshua muaj dej tsis kam, txo hydraulic poob rau tag nrho cov yeeb nkab network, thiab pab cov neeg siv kawg txuag hluav taws xob noj.
Kev teeb tsa cov khoom siv ruaj khov rau kev pabcuam ntev
QT450-10 ductile hlau tsim lub valve lub cev. Nws muaj cov cuab yeej tensile zoo thiab muaj peev xwm tiv taus. Nws tiv nrog acid-alkali corrosion coj los ntawm cov av hauv av thiab cov dej xa mus, txuas mus rau tag nrho cov kev pabcuam.
Bi-directional sealing haum rau ntau qhov nruab nrab
Kev taw qhia kev teeb tsa coj tsis muaj kev txwv rau lub valve no, txhawb nqa cov dej ntws los ntawm ob qho kev qhia. EPDM soft seal guarantees xoom xoom xoom xoom. Nws ua haujlwm zoo rau cov dej huv, dej phwj tuaj thiab cov dej tua hluav taws.
Competitive Advantage
Integrated Supply Advantage
Muaj ua tiav pob nrog peb lub Hoobkas ob -flanged ductile hlau kav; flange specifications phim zoo kawg nkaus, ua rau ib qho - nres kev yuav khoom thiab tshem tawm qhov tsis yooj yim ntawm kev sib koom tes nrog ntau tus neeg muag khoom.
Superior zuag qhia tag nrho durability piv rau yas li qub thiab npauj npaim li qub
Lub cev hlau valve lub cev tiv taus crushing loads thiab hauv av sib hais haum, thiab tseem undeformed ntawm kub kub; tsis zoo li cov yas li qub, nws muaj peev xwm tiv taus kev laus thiab tawg, thaum muab siab dua -siab tsis kam thiab ruaj khov ntev dua- lub sij hawm sib khi piv rau cov qauv npauj npaim li qub.
Tus nqi zoo heev -kev ua tau zoo piv
Features ib tug ua tau - nyob rau hauv tiv thaiv - corrosion txheej, uas ua rau tsawg heev to thiab tsawg txij nkawm zaus thaum lub sij hawm ua hauj lwm ntev -; O&M cov nqi qis dua li cov qauv rooj vag li qub lossis cov yas li qub.
Cov khoom siv
Flange-end Gate ValvesFeem ntau yog siv rau cov nroj tsuag dej, cov kav dej phwj tuaj, cov dej hauv nroog, cov phiaj xwm kev tiv thaiv hluav taws thiab cov kav dej muaj rau me ntsis uas tsis yog - cov kua corrosive thiab gases. Lawv yog cov cuab yeej tiv thaiv kom txiav tawm thiab tiv thaiv kev rov qab los ntawm kev tshaj tawm. Thiab lawv tuaj yeem raug kho raws li ntawm -qhov chaw siv, xws li nce qia mos- kaw lub qhov rooj li qub, qia tsaus muag- kaw lub qhov rooj li qub, txuas qia mos- kaw lub qhov rooj li qub, faus mos- kaw lub rooj vag li qub, pneumatic lub rooj vag, hluav taws xob, soft- kaw qhov rooj li qub, thiab lwm yam.

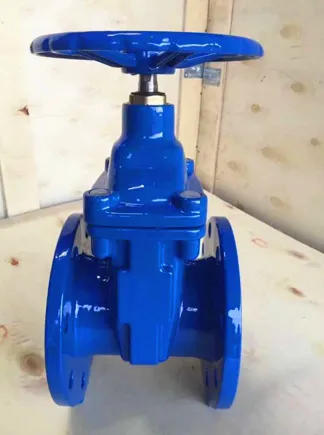

Product Showcase
Kev tsim nyog
