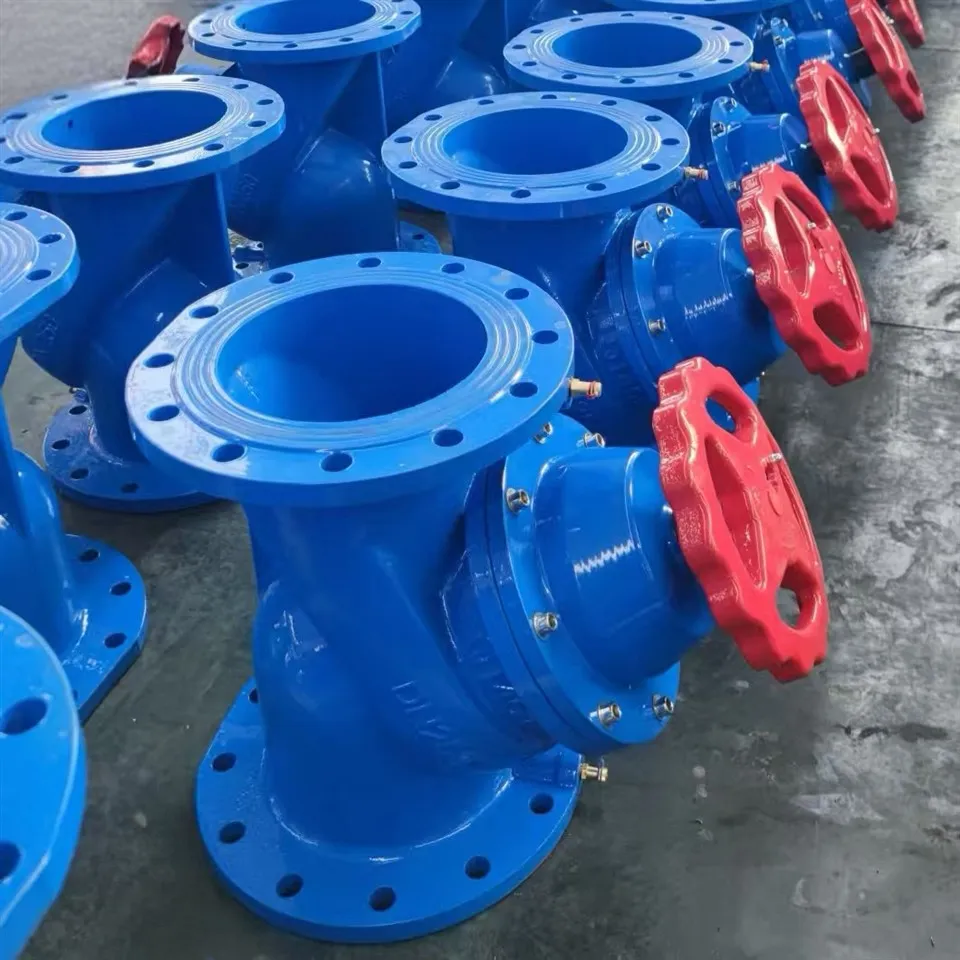

Khoom Parameters
Lub valve no yog tsim thiab tsim raws li tus qauv DIN
Ua haujlwm siab: 16kg / cm²
Plhaub ntsuas siab: 24kg / cm²
Lub rooj ntsuas siab: 18kg / cm²
Media: Dej, nruab nrab, roj
Ua haujlwm kub: 0.6-52 degree
Sab nrauv thiab sab hauv txheej: 100% fushion-bonded epoxy
Flange drilled raws li BS4504 Table 10/11,16/11
EN1092PN10, PN16
Cov ntaub ntawv thiab cov qauv
|
Tsis muaj |
Ib feem |
Khoom siv |
Standard - BS |
Txheem - DIN |
Standard - EN |
|
1 |
Bolt |
Zinc -plated |
SIB 4190 |
DIN 1693 GGG50 |
EN1563 GJS500 |
|
2 |
Npog |
Hlau hlau |
BS 2789 500-7 |
- |
- |
|
3 |
Drain plug |
Malleable hlau |
- |
- |
- |
|
4 |
Screen |
Stainless hlau |
BS970 304S15 |
- |
EN681.1 |
|
5 |
Gasket |
EPDM |
SIB 2494 |
DIN 1693 GGG50 |
EN1563 GJS500 |
|
6 |
Lub cev |
Hlau hlau |
BS 2789 500-7 |
- |
- |
Khoom Dimensions
|
DN |
L |
H |
D |
K |
D1 |
n-d |
b |
f |
NYIAJ (KG) |
|
50 |
225 |
152 |
165 |
125 |
98 |
4-19 |
19 |
3 |
9 |
|
65 |
273 |
203 |
185 |
145 |
118 |
4-19 |
19 |
3 |
14 |
|
80 |
292 |
222 |
200 |
160 |
132 |
8-19 |
19 |
3 |
16 |
|
100 |
352 |
241 |
220 |
180 |
156 |
8-19 |
19 |
3 |
23 |
|
125 |
416 |
292 |
250 |
210 |
184 |
8-19 |
19 |
3 |
38 |
|
150 |
470 |
320 |
285 |
240 |
211 |
8-23 |
19 |
3 |
45 |
|
200 |
543 |
416 |
340 |
295 |
266 |
12-23 |
20 |
3 |
70 |
|
250 |
660 |
483 |
405 |
355 |
319 |
12-28 |
22 |
3 |
105 |
|
300 |
762 |
558 |
460 |
410 |
370 |
12-28 |
24.5 |
4 |
180 |
|
350 |
949 |
795 |
520 |
470 |
429 |
16-28 |
26.5 |
4 |
365 |
Txoj Cai Ua Haujlwm
Thaum cov kua dej uas muaj cov khoom siv nkag mus rau hauv lub lim, cov impurities raug kaw los ntawm lub vijtsam lim, thaum cov kua dej huv ntws tawm ntawm lub vijtsam.
Cov lim dej muaj cov lim tshem tawm, uas tuaj yeem tshem tau yooj yim rau kev ntxuav lossis hloov ib ntus, ua kom yooj yim txij nkawm.
Cov yam ntxwv tseem ceeb
Superior Material: Ua los ntawm cov hlau nplaum, qhov twg carbon muaj nyob rau hauv cov ntawv kheej kheej, muab nws superior ductility, cuam tshuam tsis kam, thiab tag nrho kev ua tau zoo mus txog ntawm cov hlau.
Tus Qauv Tsim: Y- hom qauv rau kev pom kev ua haujlwm siab thiab poob siab.
Txoj kev sib txuas: Feem ntau siv flange kev sib txuas rau kev ruaj ntseg installation thiab sealing zoo heev.
Filtering Media: Haum rau ntau yam xov xwm xws li dej, roj, roj, thiab chav dej, lim dej tsis huv los ntawm cov kua.
Daim ntawv thov dav: Muaj feem xyuam rau cov dej hauv nroog, kev lag luam circulating dej, petrochemical, thiab fais fab kev lag luam.
Daim ntawv thov Scenario
Tiv thaiv cov twj tso kua mis, li qub, cov twj paj nruag, thiab lwm yam khoom siv los ntawm clogging thiab hnav los ntawm impurities.
Siv nyob rau hauv cov dej kais dej, boiler dej, thiab dej phwj kho tshuab.
Kev tsim nyog
Yuav koom tes nrog peb li cas?
Shanxi Jintai Hongye Casting & Forging Machinery Co., Ltd. yog nyob rau hauv Shanxi Province, Suav. Peb cov haujlwm tseem ceeb hauv kev lag luam suav nrog cov khoom siv hlau yeeb nkab fittings, cov raj xa dej, ntau yam li qub, thiab cov khoom siv manhole npog series. Rau cov ncauj lus kom ntxaws txog cov khoom lag luam lossis sib tham txog kev koom tes, thov hu rau peb txhua lub sijhawm:
