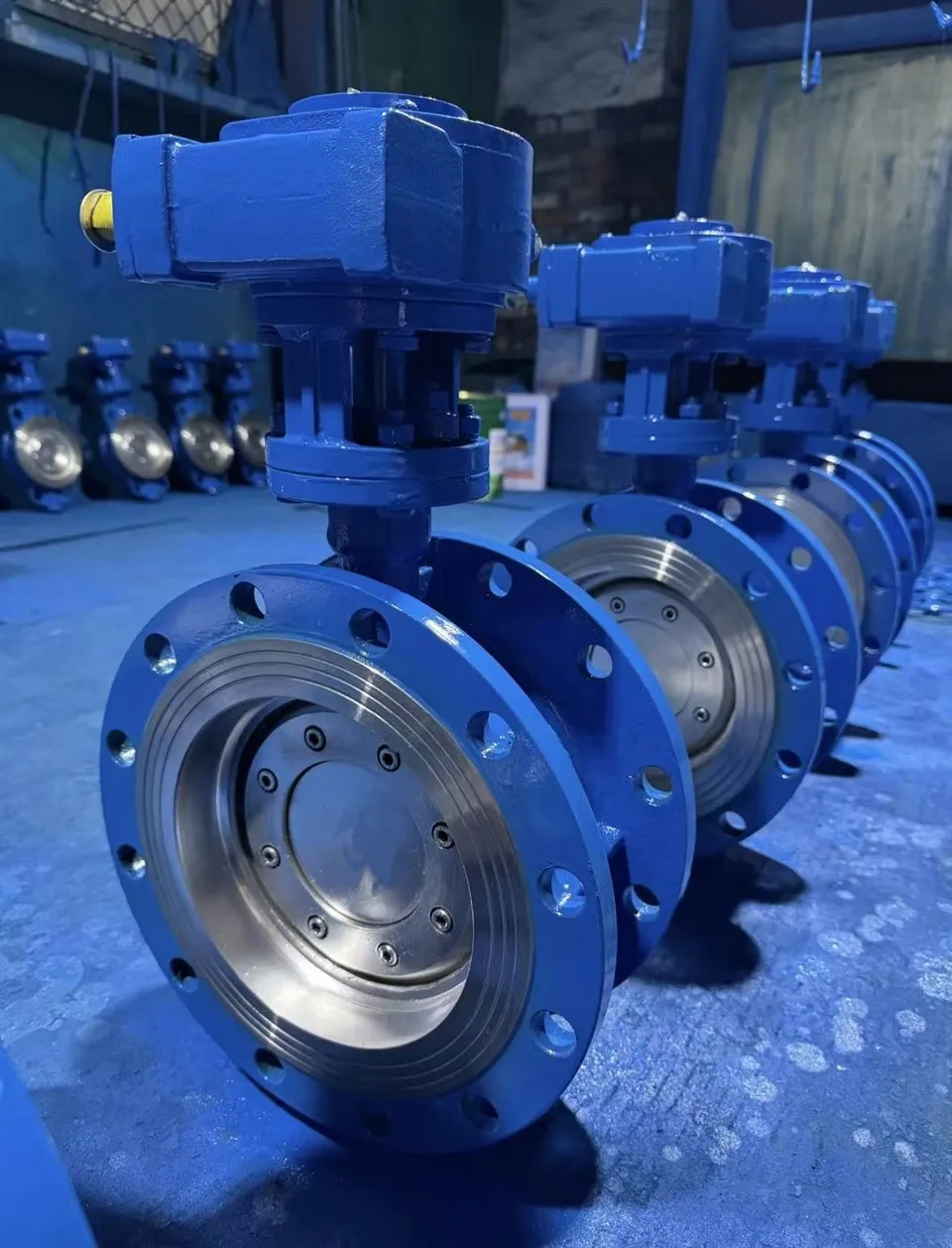

01.Product Descriptions
U hom npauj npaim valve yog cov khoom siv tshwj xeeb tshwj xeeb tswj cov khoom tsim nyog rau ntau yam kev lag luam thiab cov kav dej hauv nroog. Nws siv ob lub voj voog valve discs, uas ua haujlwm synchronously tsav los ntawm lub hauv paus valve qia. Cov neeg siv tsuas yog xav tau 90-degree kev sib hloov kom ua tiav qhov qhib thiab kaw nrawm. Qhov tshwj xeeb U-shaped valve lub cev tsim ib qho ncaj thiab du ntws channel. Nws txo qis cov dej tsis kam thiab siab poob thaum lub sij hawm xa khoom nruab nrab.
02.Basic Parameters
| Txuj | EN593 / ISO 5752 / BS5155 / AWWA C504 Flange drilling yog raws li DIN 2501, BS4504, ANSI B16.1 |
| Ua hauj lwm siab | 10bar / 16bar / 25bar |
| Kev ntsuas siab | |
| Plhaub | 15bar / 24bar / 37.5bar |
| foob | 11bar / 17.6bar / 27.5bar |
| Khoom siv | |
| Txheej | Sab hauv thiab sab nraud nrog fusion bonded epoxy txheej min250μm |
|
Tsis muaj |
Ib feem |
Khoom siv |
| 1 |
Lub cev |
DI / CI / Carbon hlau / Stainless hlau |
|
2 |
Disc |
DI/Stainless hlau 304/316, AL-Bronze |
|
3 |
Qe |
SS410/SS416/SS420/SS304/SS316 |
|
4 |
Rooj |
NBR / EPDM / PTFE / VITON |
03.Product Description
Qhov no U hom npauj npaim valve nta compact qauv, txhim khu kev qha sealing thiab ua haujlwm yooj yim. Nws kuj muaj cov txiaj ntsig zoo ntawm tus nqi, uas ua rau nws zoo tagnrho rau feem ntau nruab nrab thiab tsis tshua muaj siab pipeline ua haujlwm.
Tus Qauv Tsim: Compact thiab hnav nrog yooj yim installation
Piv nrog cov kab npauj npaim npauj npaim li qub, qhov no U- hom valve lub cev muaj luv dua tag nrho ntev thiab sib dua. Nws tuaj yeem hloov cov riam rooj vag li qub rau ntawm qhov chaw thiab txuag tau qhov chaw sib txuas ua ke.
Sealing Performance: Zero-Leakage Assurance, Ntau-Piv txwv li
Ua ke nrog U-zoo li stainless hlau sealing nplhaib, lub valve disc ua elastic haum sealing. Nws paub txog bidirectional xoom xau. Cov khoom haum rau ntau yam xov xwm xws li dej, roj, roj, kua qaub thiab alkali, npog cov zaub mov, tshuaj thiab tshuaj muaj xwm txheej.
Kev Ua Haujlwm Zoo: Ua haujlwm tau zoo, tsis muaj zog ua haujlwm, kho yooj yim
Lub valve txhawb nqa lub kaum sab xis installation. Cov khoom sib khi tuaj yeem hloov tau nyias, uas txo cov nqi tu txhua hnub. Qee cov qauv siv sab saum toj -mounted qauv. Nyob rau hauv qhov siab siab thiab loj - txoj kab uas hla ua haujlwm, cov khoom siv sab hauv tuaj yeem hloov pauv yam tsis tau tshem tawm tag nrho cov kav dej.
Kev lag luam thiab kev ua tau zoo: Tus nqi qis, Kev siv dav dav
Nws tus nqi tsuas yog 35% mus rau 40% ntawm cov rooj vag li qub nrog tib qhov tshwj xeeb, ntxiv rau cov nqi qis dua. Nws qhia tau hais tias tus nqi siab heev tshwj xeeb tshaj yog nyob rau hauv loj - txoj kab uas hla ntawm DN300.
04.Product Advantages
Lub neej ua haujlwm ntev:
Kev txais siab - cov ntaub ntawv zoo, lub valve muaj cov khoom siv ruaj khov thiab ua haujlwm zoo rau kev ua haujlwm ntev -.
Enhanced Efficiency:
Kev qhib thiab kaw nrawm ua ke nrog cov txiaj ntsig kev sib khi ua tiav tiav kev tswj xyuas cov dej kom raug, txhim kho tag nrho cov kav dej ua haujlwm zoo.
Kev siv ntau yam:
Nws haum rau ntau yam kev lag luam thiab ntau hom kev ua haujlwm, nrog rau qhov muaj zog ntawm - qhov chaw hloov tau.
Tus nqi -effectiveness:
Lub teeb yuag yooj yim txhim kho cov kauj ruam. Nws txo qis kev tsim kho thiab kev ua haujlwm txhua hnub rau cov haujlwm.
05. Daim Ntawv Thov Cheeb Tsam
U hom npauj npaim valve yog dav siv nyob rau hauv ntau qhov chaw lag luam thiab hauv nroog, suav nrog cov xwm txheej hauv qab no:
-
Municipal Water Supply and Drainage System:Qhov system no tau siv dav hauv cov kav dej hauv nroog hauv nroog, cov chaw kho dej khib nyiab, thiab cov phiaj xwm hauv nroog stormwater drainage pipeline.
-
Cua sov, qhov cua, thiab cua txias (HVAC) System:Muaj feem xyuam rau cov tshuab cua txias hauv nruab nrab, cov khoom siv cua sov, cov kav dej txias thiab cov kav dej kub xa cov kav dej.
-
Kev Tiv Thaiv Hluav Taws Xob:Siv rau cov kav dej tua hluav taws, ua tiav cov tshuaj tua hluav taws thiab cov dej tua hluav taws uas txhawb nqa cov kav dej.
-
Kev kho dej thiab kev tiv thaiv ib puag ncig kev lag luam:Dav ntsia rau hauv cov chaw kho dej phwj thiab ib puag ncig kho kav dej.
06.Corporate Services
Peb lub tuam txhab muab kev pabcuam thiab kev txhawb nqa kom ntseeg tau tias txhua tus neeg tau txais kev pabcuam siab -cov kev daws teeb meem zoo.
-
Custom Design:Peb muab kev pabcuam OEM / ODM kom tau raws li cov kev lag luam tshwj xeeb lossis cov kev xav tau.
-
Strict Quality Control:Txhua Tapping Saddle raug sim rau kev ua haujlwm, kev sib khi, thiab kev ua siab ntev.
-
Kev xa khoom zoo:Kev xa khoom sai thiab txhim khu kev qha los ntawm peb cov chaw tsim khoom hauv Shanxi, Tuam Tshoj rau cov neeg siv khoom thoob ntiaj teb
-
Kev txhawb nqa kev tshaj lij:Peb pab pawg kws tshaj lij muaj kev sib tham thiab tom qab- kev muag khoom rau kev teeb tsa, kev sib raug zoo, thiab kev saib xyuas.
07. Kev tsim nyog
08. Ntim thiab thauj
