01.Product Description

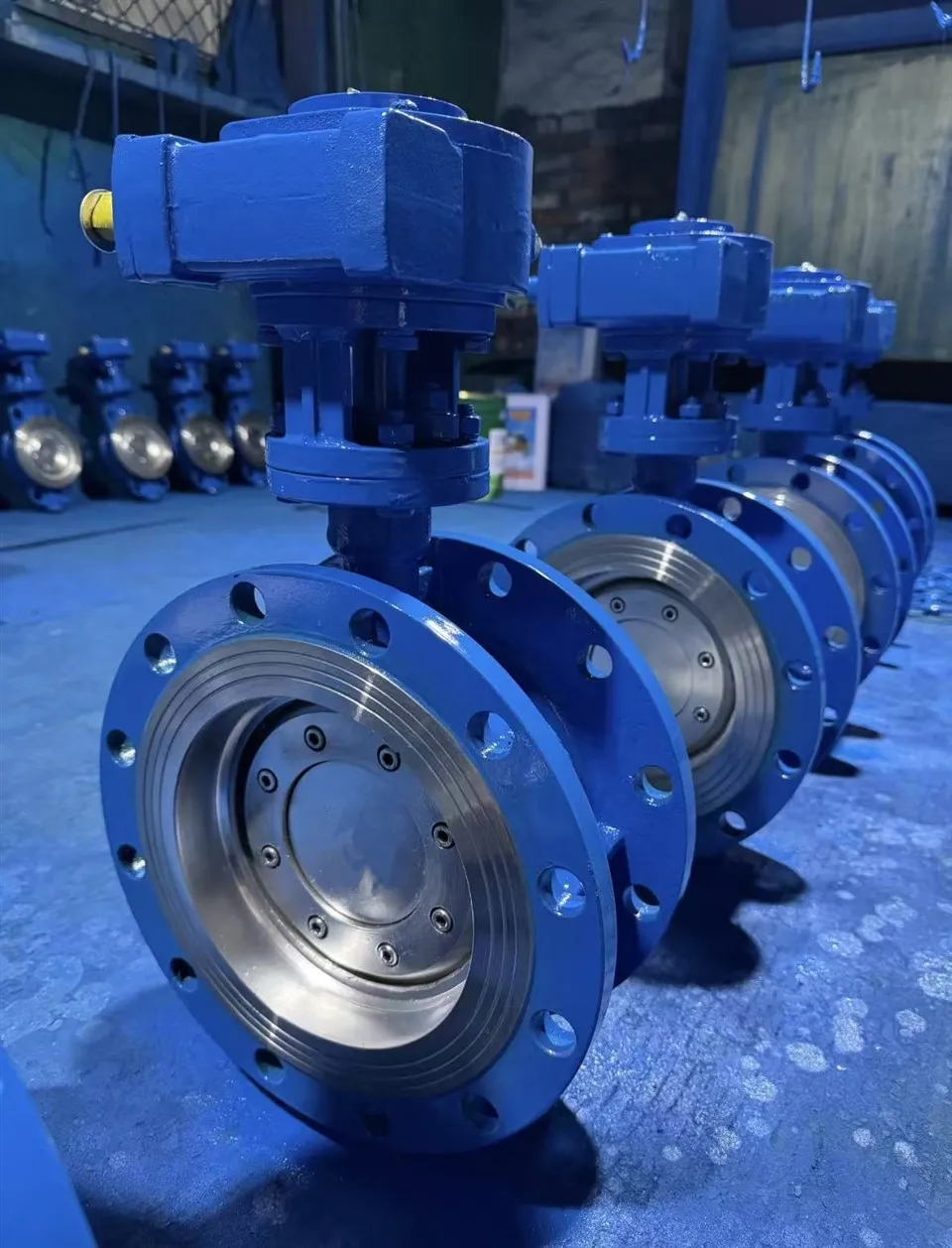

U-Hom Npauj Npaim Valve muaj qhov tsim kho tshiab U- zoo li tus qauv ntws channel, muab lub peev xwm ntau dua, kev poob siab poob qis, thiab kev sib khi zoo dua piv rau cov npauj npaim li qub. Nws yog qhov tsim nyog rau kev tswj lossis kaw dej, roj, roj, slurries, thiab corrosive media hauv nroog, tshuaj, hluav taws xob tsim hluav taws xob, HVAC, zaub mov, thiab kev lag luam tshuaj.
02. Cov ntaub ntawv yooj yim
| Qauv NO. | U- hom npauj npaim valve | Daim ntawv txuas | Flange |
|---|---|---|---|
| Siab | Lub Siab Tseem Ceeb | Daim ntawv foob | Glend Packings Globe Valve |
| Txuj | HE | Kev thauj mus los | Dej hiav txwv Freight |
| Zoo | Durable | Thauj Pob | Plywood Box |
| Cov cim lag luam | JINTAI | Specification | U- hom turbine npauj npaim valve |
| Khoom siv | Cast Iron | Qauv | Tubular |
| Muaj nuj nqi | Ddcv Ob Chav Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence, Nrvg Silence | Flow Direction | Unidirectional |
| Daim ntawv thov | Kev siv dej, kev siv dej muaj | Ntau lawm | Kev xa khoom |
| Kev muab khoom | Factory Direct Muag |
03.Product Cov yam ntxwv
Valve Phaj:
Crafted nrog unparalleled precision, lub valve phaj- kuj hu ua npauj npaim phaj- boasts ib tug txawv disk duab, kws txawj forged los ntawm hwm 304 stainless hlau. Cov khoom tshwj xeeb no muaj qhov txawv txav tsis zoo rau corrosion thiab hnav. Nws lub peev xwm zoo tshaj plaws los pivot ncig lub axis hauv lub rooj zaum ntawm lub valve mus txog 90℃ua kom yooj yim tswj tsis tau lub valve txoj haujlwm, ua rau nws muaj txiaj ntsig zoo hauv kev tswj xyuas cov kua dej.
Lub cev valve:
Engineered nrog precision los ntawm cov hlau cam khwb cia hlau, lub valve lub cev yog meticulously crafted kom xa unmatched lub zog thiab rigidity, muaj peev xwm ntawm withstanding tseem ceeb pressures thiab kub. Qhov kev xaiv ntawm cov khoom no ua kom muaj kev ruaj khov tshwj xeeb thaum muab cov txiaj ntsig zoo tshaj plaws thiab kev ua haujlwm, ua rau kev siv zog ntawm cov txheej txheem valve lub cev nrog qhov zoo tshaj plaws.
Sealing Structure:
Npauj npaim valve lub sealing qauv yog meticulously tsim, featuring elastic sealing ntsiab xws li resilient roj hmab los yog robust hlau sealing rings. Cov khoom tseem ceeb no ua kom muaj kev sib khi zoo meej ntawm 304 stainless hlau valve phaj thiab lub rooj zaum valve, lav xoom xaim thaum kaw kom ruaj ntseg, yog li txhawb nqa kev ncaj ncees thiab kev ua haujlwm zoo.
04.Cov yam ntxwv tseem ceeb ntawm cov khoom
U-Hom Flanged Npauj Npaim Valve nthuav tawm qhov tshiab U- zoo li tus qauv ntws channel tsim, xa cov peev txheej ntau dua, qis qis qis, thiab kev sib khi tshwj xeeb piv rau cov npauj npaim li qub. Zoo meej rau kev tswj lossis kaw dej, roj, roj, slurry, thiab corrosive media thoob plaws kev lag luam xws li hauv nroog, tshuaj, hluav taws xob, HVAC, thiab zaub mov & tshuaj.
-
Soft Seal (EPDM/NBR/PTFE): Guarantees xoom to, zoo tagnrho rau huv/zaub mov-qib kua.
Hlau Hard Seal (SS304/316): Ua rau kub siab (tsawg dua lossis sib npaug li 400 degree) & siab (PN16+) tsis muaj zog.
Ntau Txoj Kev Ua Haujlwm - Phau ntawv, iav, pneumatic, hluav taws xob (kev tawg- pov thawj xaiv muaj).
Long Service Life - Meticulously machined disc kom 100,000 lub voj voog yam tsis hnav!
Yooj yim Installation - Flanged kawg (GB/ANSI/DIN qauv), yuav tsum tau saib xyuas tsawg heev.
05.Product Specifications
| Nominal Loj | Hom kev ua haujlwm | Siab | Kub | Khoom siv foob | Khoom siv Disc | Khoom siv lub cev | Nruab nrab | Daim ntawv thov | Kev sib txuas Standard |
|---|---|---|---|---|---|---|---|---|---|
| DN50- 350 |
Pneumatic Actuator | PN 2 | -15-85 ° C | PTFE | WCB | Hlau Hlau | Muaj zog Acid | Dej | PN10/NP16 |
| Hluav taws xob Actuator | PIB 1.0 | -15-150 degree | EPDM | SIB 304 | Muaj zog Alkali Fodder | Roj | ANSI 150 | ||
| Phau ntawv txhais tes Lever | PIB 1.6 | SIB 316 | Zaub mov | DIN 16 | |||||
| Worm iav | Polishing phaj | JIS 10K/16K |
| Loj | CLASS 150 | JIS 10 K | PIB 10 | PIB 16 | A | B | ΦD | L | H | C | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | NPS | D1 | N-Φd1 | D1 | N-Φd1 | D1 | N-Φd1 | D1 | N-Φd1 | ||||||
| 50 | 2" | 120.6 | 4-Φ19.1 | 120 | 4-Φ19 | 125 | 4-Φ19 | 125 | 4-Φ19 | 161 | 83 | 52.9 | 42 | 292 | 99 |
| 65 | 2½" | 139.7 | 4-Φ19.1 | 140 | 4-Φ19 | 145 | 4-Φ19 | 145 | 4-Φ19 | 175 | 93 | 64.5 | 45 | 316 | 99 |
| 80 | 3" | 152.4 | 4-Φ19.1 | 150 | 8-Φ19 | 160 | 8-Φ19 | 160 | 8-Φ19 | 181 | 95 | 78.8 | 46 | 324 | 99 |
| 100 | 4" | 190.5 | 8-Φ19.1 | 175 | 8-Φ19 | 180 | 8-Φ19 | 180 | 8-Φ19 | 200 | 114 | 104 | 52 | 362 | 99 |
| 125 | 5" | 215.9 | 8-Φ22.4 | 210 | 8-Φ23 | 210 | 8-Φ19 | 210 | 8-Φ19 | 213 | 127 | 123.3 | 55 | 394 | 115 |
| 150 | 6" | 241.3 | 8-Φ22.4 | 240 | 8-Φ23 | 240 | 8-Φ23 | 240 | 8-Φ23 | 226 | 139 | 155.1 | 56 | 419 | 115 |
| 200 | 8" | 298.5 | 8-Φ22.4 | 290 | 12-Φ23 | 295 | 8-Φ23 | 295 | 12-Φ23 | 260 | 172 | 202.5 | 61 | 506 | 220 |
| 250 | 10" | 361.9 | 12-Φ22.4 | 355 | 12-Φ25 | 350 | 12-Φ23 | 355 | 12-Φ28 | 292 | 203 | 250.5 | 66 | 566 | 220 |
| 300 | 12" | 431.8 | 12-Φ22.4 | 400 | 16-Φ25 | 400 | 12-Φ23 | 410 | 12-Φ28 | 337 | 242 | 301.5 | 77 | 650 | 220 |
| 350 | 14" | 476 | 12-Φ28.5 | 445 | 16-Φ25 | 460 | 16-Φ23 | 470 | 16-Φ28 | 368 | 267 | 333.3 | 77 | 715 | 323 |
06.Cov lus pom zoo
Yog xav paub ntxiv, thov hu rau peb: WhatsApp / WeChat: +86 18334738900
