01.Product Description
Ductile Iron Swing Check Valve yog ib hom valve uas cia li qhib thiab kaw nyob rau hauv lub zog ntawm nruab nrab nws tus kheej. Nws lub luag haujlwm tseem ceeb yog txhawm rau tiv thaiv qhov rov qab ntawm qhov nruab nrab thiab zam kev sib tsoo. Lawv tsuas yog siv rau hauv cov kav dej thoob plaws kev lag luam xws li roj av, tshuaj, tshuaj, chiv, thiab hluav taws xob.
02. Cov ntaub ntawv yooj yim
| Khoom siv | Cam khwb cia hlau | Daim ntawv txuas | Flange, Weld, Clamp |
|---|---|---|---|
| Qauv | Swing | Siab | Tsawg thiab Siab Siab |
| Muaj nuj nqi | Ddcy Ob Chav Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvr Silence, Nrvr Silence | Daim ntawv foob | Hlau, Gasket, O-Nplhaib Sealing |
| Flow Direction | Unidirectional | Txuj | JIS, Bsw, ANSI, GB, DIN |
| Daim ntawv thov | Kev siv dej, kev siv dej hauv tsev, kev siv hauv tsev | Lub sij hawm xa tuaj | 15-25 Hnub |
| Txheej | Customized | Tsim | BS 1868 / ASME B16.34 |
| Loj | DN15-DN1200 | Xaus kev sib txuas | Flanged RF, FF, RfJ, Bw |
| Ntsej muag ntsej muag | ASME B16.10 | Xaus Flange | ASME B16.5 |
| Bw End | ASME B16.25 | Kuaj | API 598 |
| Keeb kwm | Tuam Tshoj | Lub Sijhawm Warranty | 24 Lub Hlis |
| OEM/ODM | Customized | Pob Loj | Customized |
| Thauj Pob | Ntoo Case | Specification | customized |
03.Structure thiab Txoj Cai Ua Haujlwm
Unidirectional Flow Control:
Tso dej ntws mus rau hauv ib qho kev taw qhia nkaus xwb, tuaj yeem tiv thaiv kev rov qab (tsis muaj kev ua haujlwm sab nraud).
Yam Tseem Ceeb:
- Hom viav vias: Hinged disc tsim, haum rau siab - ntws / qis- daim ntawv thov ceev
- Lift Hom: Vertically txav disc, siab sealing kev ua tau zoo
- Ob chav Disc hom: Wafer-style, tsis tshua muaj siab poob tsim
- Pob Kos Valve Hom: Floating pob qauv, zoo heev kam rau cov khib nyiab
04.Product Features
Ductile Iron Swing Check Valve, tseem hu ua viav vias kos valve lossis viav vias kos kos valve, cia li qhib lossis kaw raws li qhov ntws ntawm qhov nruab nrab thiab lub ntiajteb txawj nqus. Nws txoj haujlwm yog los tiv thaiv qhov rov qab ntawm qhov nruab nrab hauv cov kav dej.
Ductile Iron Swing Check Valve yog qhov tsis siv neeg valve feem ntau siv rau hauv cov kav dej uas xav tau kev khiav tawm ntawm kev tshaj tawm thiab yuav tsum tau teeb tsa kab rov tav.
Haum rau cov xov xwm huv si; tsis pom zoo rau cov xov xwm uas muaj cov khoom siv los yog cov viscosity siab.
Cov khoom siv rau lub cev tseem ceeb, cov khoom siv sab hauv, ntim khoom, gaskets, thiab fasteners tuaj yeem sib xyaw ua ke raws li cov neeg siv khoom xav tau lossis kev ua haujlwm tiag tiag.
05.Product Parameters
| Nominal Loj | Nominal Loj (Inches) | F | H (kwv yees) |
|---|---|---|---|
| 25 | 1 | 127±2 | 115 |
| 40 | 1.1/2 | 165±2 | 130 |
| 50 | 2 | 203±2 | 145 |
| 65 | 2.1/2 | 216±2 | 155 |
| 80 | 3 | 241±2 | 175 |
| 100 | 4 | 292±2 | 200 |
| 125 | 5 | 330±2 | 210 |
| 150 | 6 | 356±2 | 240 |
| 200 | 8 | 495±3 | 275 |

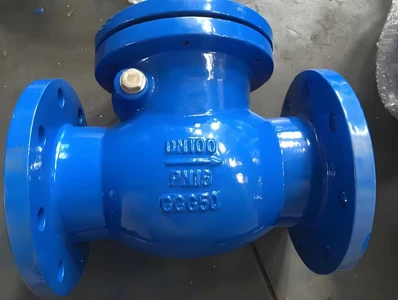

06.Product Showcase
07.Cov lus pom zoo
Yog xav paub ntxiv, thov hu rau peb: WhatsApp / WeChat: +86 18334738900
