Product Description
Lub DIN 3352 F5 flanged resilient rooj vag valve yog tsim raws li German DIN cov qauv thiab tsim nyog rau ntau yam xws li cov dej hauv nroog thiab kev tso dej, petrochemicals, thiab yog sib xws nrog ntau yam xov xwm xws li dej, roj, thiab huab cua. Nws siv EN 1092-2 PN16 flange kev twb kev txuas, yooj yim installation thiab txij nkawm thiab txo cov nqi khiav lag luam.
Khoom nta
Txhim khu kev sealing
Cov qauv sealing zoo thiab lub rooj vag lub elastic wrapping tsim ua tiav xoom to thiab yoog mus rau ntau yam kev ua haujlwm.
Durable thiab Corrosion-Resistant
Ua los ntawm GGG50 ductile hlau nrog epoxy txheej, nws muaj kev cuam tshuam -resistant, corrosion{2}}resistant, thiab muaj lub neej ntev kev pab cuam.
Kev ua haujlwm yooj yim
Tus qauv zais zais cia txuag chaw, yooj yim rau kev khiav lag luam, txhawb nqa ntawm - hloov lub foob foob, thiab pab tswj xyuas.
Kev ua haujlwm ruaj khov
Kev soj ntsuam nruj hydraulically, nws muaj qhov kub thiab txias ua haujlwm ntau, tiv thaiv plua plav, thiab ua haujlwm ruaj khov.
Technical Specifications
|
Qeb Parameter |
Cov Lus Qhia Tshwj Xeeb |
Qeb Parameter |
Cov Lus Qhia Tshwj Xeeb |
|
Executive Standard
|
DIN 3352, EN 1092-2, ISO 5208, thiab lwm yam. |
Hom Valve |
Flanged Resilient Gate Valve (Tsis yog -nce qia, Resilient Seat) |
|
Nominal Dia |
DN40 ~ DN1200 (Ntev DN40 ~ DN300) |
Nominal Siab |
PN 10 / 16 / 25 (Nyeem PN16) |
|
Ua haujlwm kub |
-20℃~ 120℃(kho los ntawm cov khoom foob) |
Siv tau nruab nrab |
Dej, roj, me ntsis corrosive media, thiab lwm yam. |
|
Khoom siv lub cev / Disc |
GGG50 Ductile Iron (Lub cev nrog epoxy txheej) |
Khoom siv foob |
EPDM / NBR (PTFE yeem) |
|
Cov khoom siv ntoo / txiv ntoo |
AISI 420 Stainless hlau / tooj dag (CW617N) |
Hom kev ua haujlwm |
Phau ntawv mas, hluav taws xob / gearbox yeem |
|
Kuaj Siab |
Plhaub: 24bar, Foob: 17.6bar (PN16) |
Kev sib txuas / qauv |
Flanged kev twb kev txuas; Qhov chaw nres nkoj puv, xoom xau, plua plav- pov thawj |

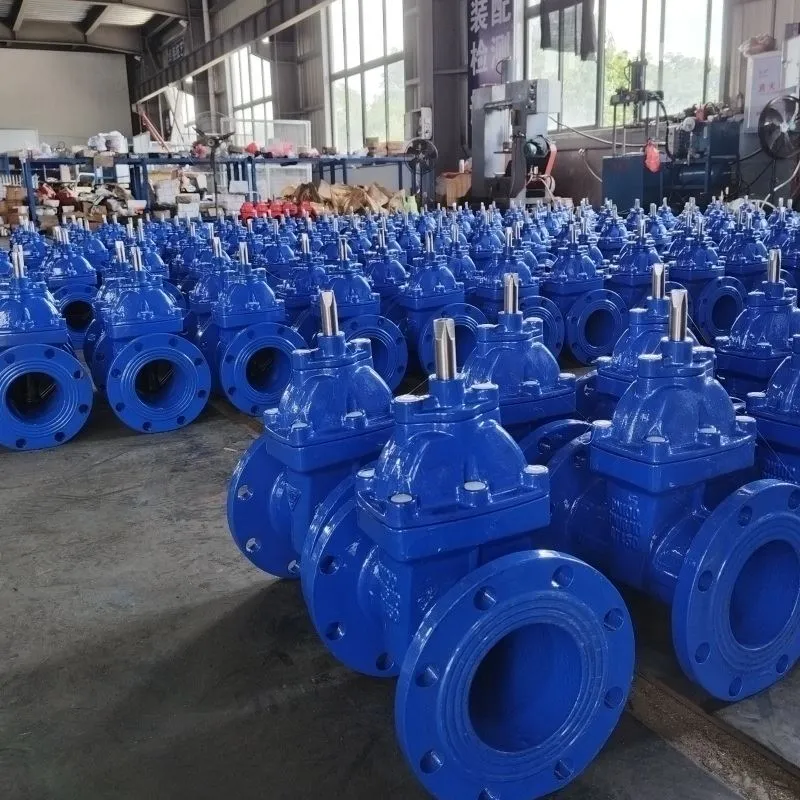

Product Showcase
