Basic Parameters
| Yam khoom | Specification |
|---|---|
| Lub npe | Ductile Hlau Flanged Spigot |
| Khoom siv | QT450-10 Cov Hlau Hlau |
| Cov qauv | ISO2531, EN545, EN598, GB / T 13295 |
| Qib Siab | PN10, PN16, PN25, PN40 |
| Nominal Diameter DN | DN80, DN100, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800, DN900, DN1000, DN11100, DN11100, DN1800, DN2000 |
| Qauv | Ib kawg flanged, ib kawg spigot socket |
| Flange Txheem | EN1092-2, ISO7005-2, RF tsa ntsej muag |
| Kev sib txuas | Flanged kawg: bolted nrog roj hmab gasketSocket kawg: hloov tau yooj yim thawb-ua ke nrog T- hom roj hmab gasket |
| Mechanical Property | Tensile zog Ntau dua los yog sib npaug rau 420MPa; Elongation Ntau dua lossis sib npaug li 10%; HBW Tsawg dua lossis sib npaug rau 230 |
| Hydrostatic Test | 1.5 npaug nominal siab |
| Txheej txheej xaiv | Sab hauv: Cement mortar hauv ob sab phlu / FBEExternal: Zinc tsuag + bitumen xim, kua epoxy, FBE |
Cov yam ntxwv zoo
Clear interface faib thiab hloov tau yooj yim installation:Ib qho kawg nta ib qho kev sib txuas ntawm flange, thaum lwm qhov kawg muaj lub qhov (socket) hloov tau, them nyiaj rau kev sib txawv ntawm kev teeb tsa thiab txo qhov nyuaj ntawm kev tsim kho.
Integrated molding rau robust qauv:Lub flange thiab cov yeeb nkab lub cev yog cam khwb cia li ib thooj, tshem tawm cov seams, tiv thaiv machining yuam kev, thiab tsis txhob cuam tshuam interface.
Muab ob npaug rau kev tiv thaiv corrosion rau dav siv:Cov yeeb nkab lub cev nta ob qhov kev tiv thaiv corrosion sab hauv thiab tawm, cais nws los ntawm kev tshaj tawm thiab kev yaig ib puag ncig, hloov mus rau ntau yam xwm txheej, thiab txuas ntxiv kev pab cuam lub neej.
Compact qauv rau qhov chaw txuag:Nws zoo huv si thiab compact zoo adapts rau ntau yam pipeline layouts, tshwj xeeb tshaj yog haum rau qhov chaw -constrained ib puag ncig.
Txoj kev sib txuas
| Hom interface | Txoj kev sib txuas | Siv tau Scenarios |
| Flange kawg | Rigid kev twb kev txuas, ruaj diagonally nrog gaskets thiab bolts kom muaj kev ruaj ntseg foob. | Tsim nyog rau kev sib txuas cov khoom siv tsis zoo thiab cov kav dej, qhov twg yuav tsum muaj lub foob zoo. |
| Qhov (socket) kawg | Lub qhov (socket) hloov tau nrog lub nplhaib roj hmab foob kom nqus tau cov khoom txav thiab thermal expansion thiab contraction. | Haum rau kev sib txuas cov kav dej hloov tau yooj yim hauv cov xwm txheej uas xav tau kev txhim kho yooj yim. |
Installation thiab Maintenance Points
Cov Ntsiab Lus Txhim Kho
Kev txhim kho yuav tsum ua raws li cov lus qhia tshwj xeeb kom ntseeg tau tias muaj kev ruaj ntseg thiab kev ruaj ntseg ntawm cov qauv. Cov ntsiab lus tseem ceeb yog raws li nram no:
⒈ Ua ntej kev teeb tsa, ua tib zoo ntxuav lub flange sealing nto thiab spigot kom huv si thiab huv si.
⒉ Siv cov khoom sib txuam ntawm cov flange kawg. Tighten bolts diagonally thiab tusyees nyob rau hauv ntau theem kom tiv thaiv kom tsis txhob xau.
⒊ Ntxig lub nplhaib roj hmab uas tsim nyog rau hauv qhov kawg ntawm lub qhov ncauj thiab thawb nws mus rau hauv lub qhov (socket) raws li cov lus qhia tshwj xeeb. Tshawb xyuas qhov kev tso kawm kom raug tom qab kev teeb tsa.
⒋ Flanges yuav tsum tsis txhob muab faus ncaj qha. Cov seem faus yuav tsum tau tiv thaiv los ntawm manholes los tiv thaiv av yaig.
⒌ Tom qab kev teeb tsa, kev ntsuas dej siab lossis huab cua siab yuav tsum tau ua kom paub tseeb tias tsis muaj qhov xau ua ntej muab cov raj xa mus siv.
Cov Ntsiab Lus Kho
Kev saib xyuas niaj hnub tuaj yeem txuas ntxiv lub neej kev pabcuam thiab ua kom cov kav dej ruaj khov. Cov ntsiab lus tseem ceeb yog raws li nram no:
⒈ Tsis tu ncua xyuas flange bolts kom nruj thiab sealing. Tighten xoob bolts tam sim ntawd thiab hloov cov khoom tawg tam sim ntawd.
⒉ Tsis tu ncua ntxuav qhov chaw ntawm cov yeeb nkab fittings. Kho tej yam puas sab nrauv los tiv thaiv-corrosion txheej tam sim ntawd kom tiv thaiv kom txhob muaj corrosion.
⒊ Tsis tu ncua xyuas cov manholes ntawm faus yeeb nkab fittings kom tiv thaiv dej thiab khib nyiab los ntawm corroding lub flanges thiab bolts.
⒋ Tsis tu ncua tshuaj xyuas cov khoom tiv thaiv sab hauv -corrosion hauv ob sab phlu, kho qhov kev puas tsuaj sai sai, thiab tiv thaiv qhov nruab nrab los ntawm corroding lub cev yeeb nkab.
⒌ Tsis txhob cuam tshuam sab nraud thaum lub sijhawm tu. Disassemble flanges raws li specifications thiab hloov gaskets nrog cov tshiab.
Competitive Advantage
| Cov khoom sib piv | Ob chav Flanged Daim | Ductile Hlau Flanged Spigot |
|---|---|---|
| Kev sib koom ua ke | Ob qhov kawg nruj flanged, tag nrho cov kav raj xa dej. Tsis tuaj yeem nqus cov av sib haum xeeb thiab thermal nthuav dav, nws tuaj yeem ua rau hauv qhov chaw tsis sib xws. | Ib lub qhov (socket) sib koom ua ke + ib lub flange nruj. Kev sib txuas qhov (socket) compensates pipeline displacement, zoo heev los tiv thaiv -seismic thiab anti- daws teeb meem kev ua tau zoo. |
| Tus nqi tsim kho | Ob qhov kev sib txuas flanged yuav tsum muaj ntau cov bolts thiab gaskets, cov khoom siv ntau dua thiab cov nqi zog. | Kaw los ntawm cov roj hmab gasket ntawm qhov (socket) kawg, tsawg dua fasteners, cov khoom siv qis dua thiab cov nqi installation. |
| Daim ntawv thov Scenario | Feem ntau yog siv rau saum toj no - cov kav dej hauv av nrog kev txhawb nqa ruaj khov hauv cov yeeb nkab gallery. | Qhov zoo tshaj plaws kev hloov pauv haum rau faus cov kav dej loj txuas nrog cov khoom siv thiab cov khoom siv, nyiam cov khoom siv rau cov phiaj xwm faus hauv nroog. |

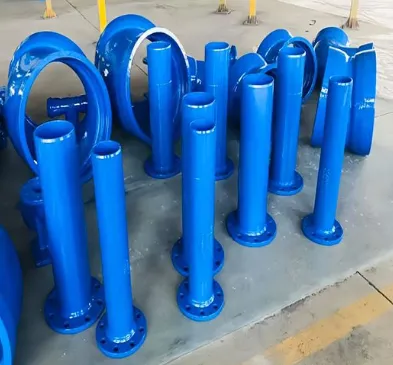

Product Showcase
tuam txhab Kev Tsim Nyog
Yuav koom tes nrog peb li cas?
Shanxi Jintai Hongye Casting & Forging Machinery Co., Ltd. yog nyob rau hauv Shanxi Province, Suav. Peb cov haujlwm tseem ceeb hauv kev lag luam suav nrog cov khoom siv hlau yeeb nkab fittings, cov raj xa dej, ntau yam li qub, thiab cov khoom siv manhole npog series. Rau cov ncauj lus kom ntxaws txog cov khoom lag luam lossis sib tham txog kev koom tes, thov hu rau peb txhua lub sijhawm:
