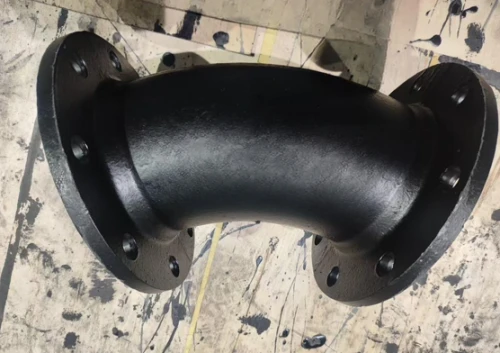

Ductile Iron 45℃ Bend |
|
|
Ductile Iron QT450-10 (GGG50) |
|
|
DN80-DN2600 |
|
|
PN10 / PN16 / PN25 / PN40 |
|
|
GB/T 13295, ISO2531, EN545, EN598 |
|
|
Double Flange 45℃ BendDouble Socket 45℃ BendSocket and Spigot 45℃ Bend45℃ Duckfoot Bend |
QT450-10 matrix with a tensile strength of >=450 MPa; offers impact and settlement resistance, combining the corrosion resistance of cast iron with the toughness of steel.
Available in socket-and-spigot or double-flange configurations; utilizes EPDM rubber gaskets for flexible sealing that accommodates slight deflection, ensuring quick installation.
Smooth internal walls (C≈130); head loss during a 45℃ turn is only 50%–60% of that for a 90℃ elbow.
|
Ductile Iron 45℃ Bend (QT450-10) |
||
|---|---|---|
|
|
Great elongation and high pressure resistance, suitable for high-pressure water supply trunk pipelines. |
Almost no plasticity with low pressure bearing capacity, only applicable for low-pressure drainage pipelines. |
|
|
Excellent fatigue resistance. Withstands frequent pressure fluctuations and water hammer impact, extending service life. |
Prone to crack expansion under alternating stress, poor resistance to water hammer and cyclic load. |
|
|
Optimized wall thickness under equal pressure rating, lighter weight, lower transportation and construction costs. |
Requires thicker wall to compensate brittleness, resulting in heavier weight and higher onsite cost. |
|
|
Complete standard system with T-type / K-type sockets and flange connections; high gasket interchangeability. |
Mostly outdated non-standard products, difficult part replacement and poor project compatibility. |
|
Long-term Operation Cost |
Low failure rate, greatly reduces maintenance, excavation and water outage repair costs. |
Frequent breakage requires full-section excavation and replacement, causing high maintenance expenses. |
Municipal Water Supply Projects: Urban tap water distribution networks, water treatment plant inlet/outlet piping, and pressurized pumping station pipeline redirection; suitable for potable water transport.
Fire Protection Piping Systems: Outdoor buried fire-fighting water supply pipelines and gradual directional changes for main fire-fighting lines within industrial parks.
Water Conservancy Projects: Reservoir water transmission pipelines, water diversion projects, and pressurized water transmission pipelines for irrigation districts.
Industrial Park Piping Networks: Reclaimed water transport, circulating water pipelines, and industrial water supply and drainage lines within plant facilities.
Large-scale Infrastructure Support: Buried water supply and drainage pipelines for integrated utility tunnels, airports, ports, and metro systems.
Residential and Real Estate Projects: Outdoor water supply and underground sewage network projects, including both renovations and new installations for residential communities.
Shanxi Jintai Hongye Casting and Forging Machinery Co., Ltd., located in Shanxi Province, China, is a leading manufacturer of ductile iron pipe fittings, pipes, various valves, and manhole covers. We have automated production lines and an experienced production technology team to provide you with professional and flexible customized solutions.
