Product Overview

051c6d927f2d15ef0af8929aa1c546c3

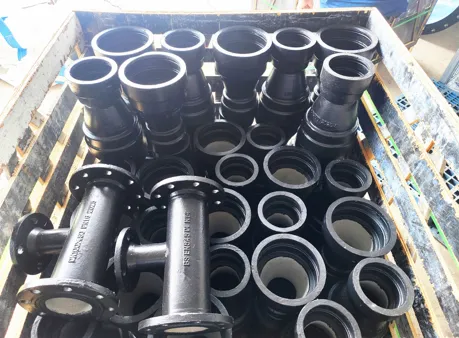

Lub qhov (socket tapered reducer) no yog ib qho tseem ceeb sib txawv - txoj kab uas hla sib txuas ua ke rau tag nrho - qhov loj ntawm cov kav dej hlau kav, tsim nruj me ntsis rau ISO2531, GB / T 13295 thiab EN545 kev lag luam cov qauv. Tsim los nrog kev sib koom ua ke ntawm lub qhov (socket) lub qhov ncauj thiab conical tapered hloov seem, nws txuas cov kav dej sib txawv ntawm cov calibers seamlessly, ua kom tiav cov dej ntws ruaj khov hloov dua siab tshiab rau cov dej hauv av faus, dej phwj tuaj thiab cov kav dej ntws. Concentric thiab eccentric structural versions yog ob qho tib si muaj kom haum rau txoj kab ntsug thiab kab rov tav layout xav tau nyias.

Ntsiab Technical Parameters

Yam khoom	Kev Xav Tau
Sealing Performance	Roj hmab cov pob qij txha yuav tsum xeem dhau qhov ntsuas hydrostatic ntawm 1.5 npaug ntawm kev ua haujlwm siab
Pipe Diameter Tolerance	± 1% (rau ductile hlau castings)
Phab ntsa Thickness kam rau ua	± 0.2 hli (rau CNC machining)
Qhov tob tob	Tsis pub tsawg tshaj 200mm (ib tus qauv yuav tsum tau)
Lub kaum ntse ntse	± 0.5℃(rau beveled txo cov kav dej)

Core Technical Performance

Crafted los ntawm QT500-7 siab-qib spheroidal graphite ductile hlau los ntawm precision casting thiab siab -kub spheroidization annealing, nws cov graphite sab hauv tsim cov duab kheej kheej kheej kheej, xa lub zog tensile siab tshaj 500MPa thiab elongation tus nqi siab tshaj 7%. Tag nrho cov khoom siv tau ua tiav ob qho kev tiv thaiv kev tiv thaiv corrosion: sab nraud zinc txau ntxiv rau asphalt txheej, sab hauv cov cement mortar hauv ob sab phlu, sib txuas kom nruj nrog cov hlau hauv paus los thaiv kev xeb ntawm cov dej phwj tuaj, acidic thiab alkaline av, yoog mus rau lub sijhawm ntev nyob rau hauv qhov chaw ntub dej hauv av.

Lub qhov (socket end reserves standard groove) for rubber ring locking, support T-type, K-type flexible sealing joints. Nws tso cai rau 1℃mus rau 3℃angular deflection thaum lub sij hawm installation, tseem tuav xoom to nyob rau hauv rated PN10 / PN16 siab txawm tias me ntsis lub hauv paus kev daws teeb meem tshwm sim. Sab hauv conical tapered channel txais kev hloov pauv hloov tau yooj yim, txo cov dej turbulence thiab hauv zos siab poob pom tseeb, nrog rau sab hauv phab ntsa roughness khaws cia kom tsis txhob muaj sediment tsub zuj zuj thiab ntws blockage. Tag nrho cov tiav qhov loj me ntawm DN80 txog DN2600, tag nrho cov tiav nrog qhov tseeb qhov ntev ntev los lav kev sib hloov pauv nrog cov khoom siv hluav taws xob tseem ceeb ntawm cov yeeb nkab hlau spigot kawg. Txhua daim tiav dhau 1.5 npaug ntawm qhov ntsuas siab hydrostatic plhaub kuaj ua ntej lub Hoobkas xa khoom kom paub meej tias cov qauv nruj.

Cov Txheej Txheem Txhim Kho

Kev npaj Foundation

Lub qhov (socket) kawg yuav tsum tau muab ntsia rau sab saum toj.
Lub hauv paus nce siab yuav tsum ntsuas qhov tseeb.

Kev npaj ua ke

Tshem tawm cov khib nyiab thiab khib nyiab.
Siv cov roj nplaum sib npaug rau cov nplhaib roj hmab.

Cov txheej txheem txuas

Siv cov cuab yeej siv tshuab (xws li excavators, saw hoists) rau kev ntxig.
Lub spigot yuav tsum tau muab tso rau hauv lub qhov (socket) tag nrho.

Kev soj ntsuam zoo

Txheeb xyuas lub qhov (socket) - qhov sib txawv (9-15mm yog qhov tau).
Ua ib qho dej - kev ntsuas nruj kom paub tseeb tias kev sib khi ruaj khov.

Qhov tseeb Pipeline teeb meem Nws daws tau

Kev pheej hmoo ntawm cov dej xau ntawm qhov sib txawv ntawm - txoj kab uas hla rigid pob qij txha

Ib txwm welded steel reducers tawg yooj yim nyob rau hauv geological hloov chaw thiab kub hloov, thaum nruj flanged reducers loosen bolts tom qab ntev - vibration. Socket sealing absorbs micro hloov, ua kom ruaj khov txawm tias muaj cov yeeb nkab me me offset, txwv tsis pub cov dej nkag hauv av thiab tsis yog - cov nyiaj tau los ntawm cov dej pov tseg.

Blockage thiab sediment buildup ntawm abrupt yeeb nkab loj hloov

Txoj cai-lub kaum sab xis txo qis cov qauv ntxiab sludge, fiber ntau thiab cov khib nyiab tas li, ua rau cov yeeb nkab hauv zos. Streamlined tapered puab phab ntsa qhia cov kua dej ntws zoo, txo cov residue adhesion thiab txo qis cov raj xa dej dredging zaus.

Tus nqi hloov pauv siab rau cov khoom tawg yooj yim cam khwb cia hlau reducers

Grey cam khwb cia hlau tapered fittings tawg nyob rau hauv backfill siab thiab lub tsheb thauj khoom, yuav tsum tau tag nrho -section pipeline excavation rau hloov. Cov hlau tsis muaj zog tiv thaiv tsis txhob tawg tawg, thiab lub qhov (socket) ceev disassembly tsuas yog xav tau kev hloov lub foob hauv zos yam tsis muaj kev khawb loj -.

Huab cua txuam nrog cuam tshuam txoj haujlwm kab rov tav

Ordinary concentric reducers tsim cov hnab ntim cua ntawm kab rov tav khiav, ua rau cov twj tso kua mis cavitation thiab cov dej tsis ruaj khov. Eccentric socket tapered tsim ua kom cov yeeb nkab hauv qab dej ntws tawm, tso cua nkag tau txais thiab tiv thaiv cov twj tso dej hauv qab thiab cov meters ntawm huab cua rauj puas tsuaj.

Corrosion tsis ua hauj lwm nyob rau hauv hnyav av thiab dej phwj ib puag ncig

Bare hlau reducers xeb sai sai hauv saline -alkali av thiab dej phwj muaj deicing agent. Multi-txheej txheej tiv thaiv- txheej txheej tiv thaiv cov tshuaj yaig, yoog rau sab qaum teb lub caij ntuj no deicing ntsev tiv tauj thiab ntug hiav txwv siab -cov av noo corrosive av

Cov txheej txheem ntau lawm

product-813-418

Corporate Services

Peb lub tuam txhab muab kev pabcuam thiab kev txhawb nqa kom ntseeg tau tias txhua tus neeg tau txais kev pabcuam siab -cov kev daws teeb meem zoo.

Custom Design:Peb muab kev pabcuam OEM / ODM kom tau raws li cov kev lag luam tshwj xeeb lossis cov kev xav tau.
Strict Quality Control:Txhua Tapping Saddle raug sim rau kev ua haujlwm, kev sib khi, thiab kev ua siab ntev.
Kev xa khoom zoo:Kev xa khoom sai thiab txhim khu kev qha los ntawm peb cov chaw tsim khoom hauv Shanxi, Tuam Tshoj rau cov neeg siv khoom thoob ntiaj teb.
Kev txhawb nqa kev tshaj lij:Peb pab pawg kws tshaj lij muaj kev sib tham thiab tom qab- kev muag khoom rau kev teeb tsa, kev sib raug zoo, thiab kev saib xyuas.
