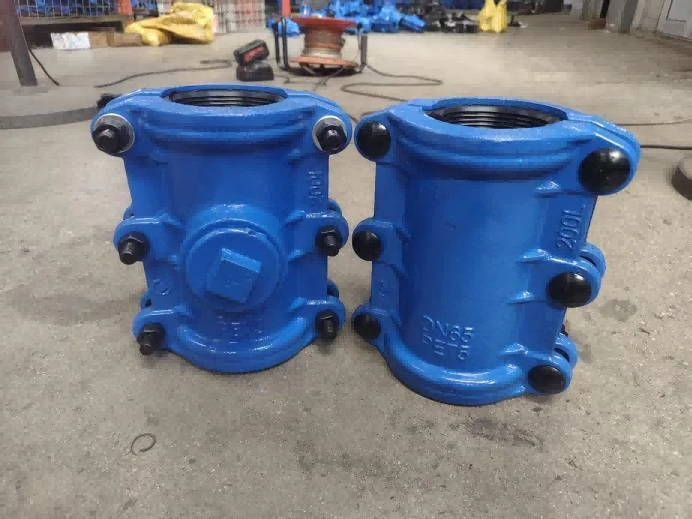

Kev sib xyaw ua ke
|
Lub Npe |
Khoom siv thiab piav qhia |
|
Tsev |
QT450-10 cov hlau nplaum, lub zog tensile siab thiab cuam tshuam tsis kam; nto coated nrog anti-corrosive asphalt lossis epoxy xim. |
|
Sealing Gasket |
Txheem EPDM roj hmab, ib puag ncig, tsis yog - tshuaj lom thiab kev laus - tiv taus rau kev pabcuam dej haus; NBR thiab FKM roj hmab muaj rau cov xov xwm tshwj xeeb. |
|
Fasteners |
Qib 4.8 / 8.8 carbon steel bolts nrog tiv thaiv - kho corrosion; 304 stainless hlau bolts xaiv tau rau siab -kawg ua haujlwm. |
Basic Parameters
|
Yam khoom |
Technical Specification |
|
Sab hauv thiab sab nraud Anti-corrosion Txheej |
Epoxy Coal Tar / Fusion Bonded Epoxy (FBE) txheej, haum rau faus dej thiab cov kav dej. |
|
Kev ntsuas siab |
PN10 (1.0 MPa) PN16 (1.6 MPa) (Kev xaiv tseem ceeb rau cov dej hauv nroog) Customizable rau kev kub siab Ntau dua lossis sib npaug rau 2.0 MPa |
|
Siv tau nruab nrab |
Cov dej haus, dej phwj tuaj, reclaimed dej; hom roj tshwj xeeb muaj nyob ntawm kev thov cais |
|
Ua haujlwm kub |
-20℃-70℃(EPDM gasket) |
|
Cov yeeb nkab haum |
Cov yeeb nkab hlau (ISO2531/EN545), grey cam khwb cia hlau yeeb nkab, steel yeeb nkab; ib nrab qauv sib xws nrog PE / PVC kav |
Specifications thiab Model
|
DN |
Sab nraud txoj kab uas hla OD (mm) |
Txuj Length L (mm) |
Extended Ntev L + (mm) |
|
DN 80 |
98 |
270 |
360 |
|
DN100 |
118 |
275 |
375 |
|
DN150 |
170 |
285 |
385 |
|
DN200 |
222 |
290 |
390 |
|
DN 250 |
274 |
300 |
400 |
|
DN 300 Nws |
326 |
310 |
420 |
|
DN350 |
378 |
330 |
440 |
|
DN400 |
429 |
340 |
460 |
|
DN450 |
480 |
360 |
480 |
|
DN500 |
532 |
380 |
500 |
|
DN 600 Nws |
635 |
400 |
530 |
|
DN 700 Nws |
738 |
430 |
560 |
|
DN 800 Nws |
842 |
450 |
600 |
|
DN900 Nws |
945 |
480 |
640 |
|
DN1000 |
1048 |
510 |
680 |
|
DN1200 Nws |
1255 |
570 |
740 |
Ntsiab nta
Txhim khu kev kub ceev thiab yooj yim
Tsis tas yuav txiav cov yeeb nkab lossis ua vuam; yuav tsum tau khawb me me, txo qis sijhawm rau kev pabcuam dej lossis roj av thiab ua kom muaj kev kho sai sai.
Reusable thiab tshem tau
tuaj yeem rhuav tshem rau kev tshuaj xyuas, ua kom yooj yim rau kev kho kav dej yav tom ntej; Cheebtsam yog ib qho yooj yim los hloov.
High Installation kam rau ua
Haum rau pinholes, longitudinal kab nrib pleb, circumferential kab nrib pleb, thiab lub qhov (socket) sib koom ua ke; yuav tsum muaj kev txawj ntse tsawg kawg nkaus rau kev teeb tsa.
Txoj Cai Ua Haujlwm
Ob lub-cov khoom siv hluav taws xob hlau yog clamped nyob ib ncig ntawm qhov xau ntawm cov kav dej, thiab cov fasteners ntawm ob sab yog nruj nreem sib npaug, ua rau lub vaj tse muaj zog radial compressive ntawm cov roj hmab sab hauv;
Nyob rau hauv compression, EPDM gasket ua nruj nreem rau ob sab phab ntsa ntawm cov yeeb nkab thiab cov phab ntsa sab hauv ntawm lub tsev, sau qhov khoob thiab them nyiaj rau me ntsis tawm - ntawm - roundness lossis me misalignment. Qhov no tsim ib qho txuas ntxiv, siab- nruj sealing uas tiv thaiv qhov nruab nrab los ntawm kev tawm mus rau sab nraud, ua kom kho sai ntawm cov pinholes, tawg, thiab pob qij txha.
Daim ntawv thov Scenario
Kev kho thaum muaj xwm txheej ceev ntawm cov dej hauv nroog thiab cov kav dej phwj tuaj; kho cov pinholes, tawg, thiab cov ntsiab lus to
Kev kho lub tswb nrov-thiab-spiot pob qij txha hauv cov kav hlau thiab cov kav hlau
Kev saib xyuas ntawm cov tsev nyob theem nrab cov dej xa dej thiab cov kav dej hauv cov kav dej
Emergency leak sealing rau cov kav dej xa hluav taws xob
Kev kho cov kav dej xau los ntawm kev sib haum xeeb me me cuam tshuam rau cov kev sib txuas hauv av
Tsis yog-kev kho mob (tsis muaj cov yeeb nkab txiav); haum rau cov kav xa dej tseem ceeb uas qhov kev pabcuam ncua ntev tsis ua tau
Kev kho sai ntawm qhov tsis xws luag tau txheeb xyuas thaum lub sij hawm ntsuas siab ntawm cov kav dej txuas tshiab txuas
Lub Tuam Txhab Txuj Ci
Shanxi Jintai Hongye Casting thiab Forging Machinery Co., Ltd., nyob rau hauv Shanxi xeev, Suav teb, yog ib tug ua chaw tsim tshuaj paus ntawm ductile hlau yeeb fittings, kav, ntau yam li qub, thiab manhole npog. Peb muaj automated ntau lawm kab thiab ib tug kev paub ntau lawm technology pab neeg los muab koj nrog kev thiab hloov tau customized daws.
