Lub ductile hlau tag nrho lub qhov (socket) txo tee yog ib qho tseem ceeb haum rau cov ceg sib txuas hauv cov kav dej. Ua los ntawm siab -zoo QT450-10 cov hlau nplaum los ntawm kev poob ua npuas ncauj, nws ua raws li cov qauv xws li GB/T 13295-2019. Tag nrho peb qhov kev sib txuas yog lub qhov (socket) hom, tso cai rau kev sib dhos ceev nrog cov roj hmab sealing rings. Kev txhim kho yog yooj yim, thiab lub foob muaj zog, ua kom muaj kev hloov pauv ntawm cov kav dej loj thiab ceg thiab tiv thaiv kev tawm mus.
Khoom nta
Yooj yim Installation
Saj zawg zog tag nrho lub qhov (socket) txuas nrog roj hmab sealing rings tshem tawm qhov xav tau ntawm vuam, ua kom muaj kev sib dhos sai thiab ua haujlwm siab.
01
Txhim khu kev sealing
Tsis muaj qhov xau tau pom thaum lub sijhawm ntsuas dej siab, tiv thaiv cov kav dej xau tawm thiab ua kom muaj kev nyab xeeb ntawm kev ua haujlwm.
02
Corrosion thiab Durability
Kub-dip galvanized sab nrauv + cement mortar hauv ob sab phlu muab kev tiv thaiv corrosion thiab kev laus, ncua kev pab cuam lub neej.
03
High adaptability
Customizable specifications, phab ntsa thicknesses, thiab txoj kab uas hla variations kom haum rau ntau yam kev ua hauj lwm tej yam kev mob thiab piping system yuav tsum tau.
04
Kev ua haujlwm ruaj khov
Cov qauv tsim nyog txo qis kev poob siab thiab muaj peev xwm hloov tau yooj yim deflection, hloov mus rau kev ua haujlwm nyuaj.
05
Technical Specifications
|
Lub npe Parameter |
Technical Specifications |
Lus hais |
|
Khoom npe |
Ductile Iron Full Socket Txo Tee |
Lub qhov (socket) tag nrho |
|
Khoom siv |
Hlau Hlau (QT450-10) |
Ua raws li GB/T 1348-2019, customizable |
|
Nominal Diameter (DN) |
Cov yeeb nkab loj: DN50-DN300; Cov kav dej: DN40-DN250 |
Customizable txo kev sib xyaw ua ke |
|
Nominal Siab (PN) |
1.0MPa, 1.6MPa |
Customizable mus txog tsawg dua los yog sib npaug rau 3.0MPa |
|
Phab ntsa Thickness Qib |
K9, K12 |
Ua raws li lub teb chaws tus qauv, customizable |
|
Txoj kev sib txuas |
Tag Nrho Qhov (Socket Type) Flexible Joint |
Matched nrog roj hmab sealing nplhaib |
|
Sealing Performance |
Tsis muaj dej xau hauv kev ntsuas dej siab |
Ua raws li lub teb chaws tus qauv xeem cov cai |
|
Anti-Kev kho corrosion |
Kub-dip galvanizing sab nraud, cement mortar hauv ob sab hauv |
Ua raws li cov qauv tiv thaiv-corrosion |
|
Mechanical Properties |
Tensile Strength Ntau dua los yog sib npaug rau 450MPa, Yield Strength Ntau dua lossis sib npaug rau 310MPa, Elongation Ntau dua lossis sib npaug li 10% |
Ua raws li lub teb chaws tus qauv xeem txoj kev |
|
Siv tau nruab nrab |
Siv dej, dej phwj tuaj, roj, thiab lwm yam. |
Customizable rau muaj zog corrosive media |
|
Siv tau qhov kub thiab txias |
-20℃~ +50 degree |
Customizable rau adaptive kub |
|
Txheej txheem Casting |
Poob Foam Casting |
Precise loj, tsim nyog nto |
|
Executive Standard |
GB / T 13295-2019, thiab lwm yam. |
Daim ntawv pov thawj zoo muaj |
|
Qhov yuav tsum tau muaj |
Smooth nto, tsis muaj teeb meem tsis xws luag |
Tsim nyog los ntawm kev tshuaj xyuas qhov muag |
|
Qhov hnyav |
Muab xam los ntawm specification (Piv txwv: DN100 * 80 ≈ 18kg) |
Raws li qhov tseeb specifications |

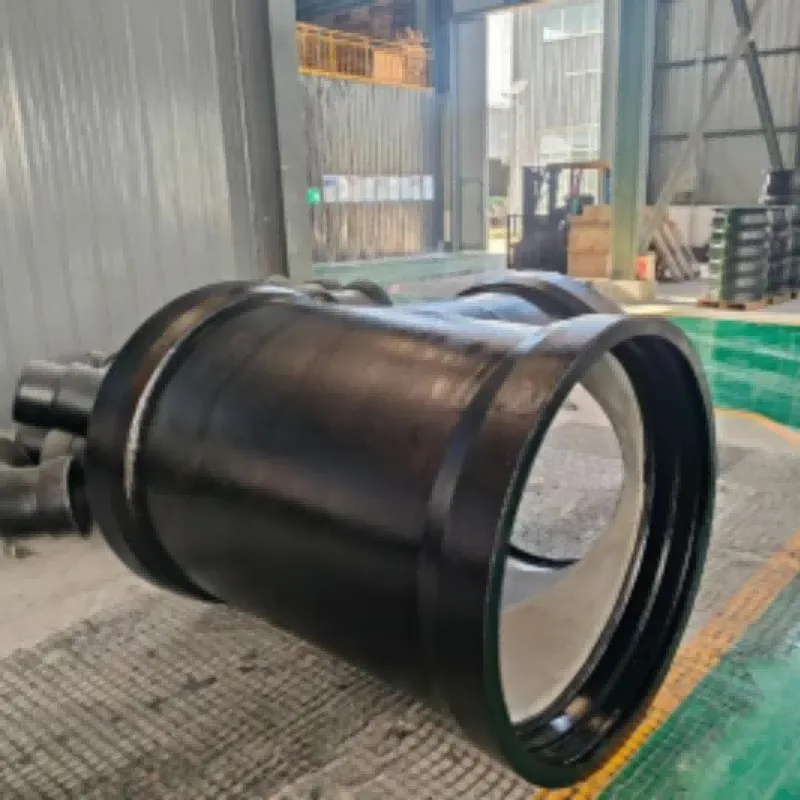

Product Showcase
