Basic khoom parameter
|
Khoom npe: |
qhov (socket) flange |
|
Khoom siv: |
Hlau hlau |
|
Qhov Chaw Keeb Kwm: |
Shanxi, Suav teb |
|
Hom Lub Npe: |
Jintai-JT |
|
Piav txog: |
Flange qhov (socket). |
|
Loj: |
DN65mm-DN2600mm |
|
Hom sib koom: |
Flange hom |
|
Hom: |
Tyton (push on) flange qhov (socket). |
|
K hom bolted caj pas flange socket |
|
|
Mechanical sib koom flange qhov (socket). |
|
|
Ductile hlau flange qhov (socket) rau PVC yeeb nkab |
|
|
Accessroy: |
NBR, SBR, EPDM Gasket, Hlau Bolts & Ceev, Gland, |
|
"T" hom Bolts & Ceev, Tshwj Xeeb Rubber Rings rau PVC kav, thiab lwm yam. |
|
|
Customized kev them nyiaj yug: |
OEM |
|
Siab: |
PN10/NP16 |
|
Xim: |
Xiav, Dub, Ntshav thiab lwm yam. |
|
Txheem: |
EN545, EN598, ISO2531, ANSI / AWWA, thiab lwm yam |
|
Chaw nres nkoj: |
Xingang, Qingdao / Raws li cov neeg siv khoom xav tau |
|
Warranty: |
1 xyoo |
|
Lub sij hawm xa tuaj (hnub): |
15-30 (hnub) |
|
Txheej txheem ntau lawm: |
Poob-ua npuas ncauj casting |
|
Kev tshuaj xyuas: |
Foundry hauv tsev |
|
Kev tshuaj xyuas thib peb muaj thaum thov |
|
|
Package standard: |
Ntoo pallets lossis rooj ntoo |
|
Kev kuaj: |
Ntsuas raws li ISO 2531 / EN 545 / EN598 thiab 100% dej siab. |
|
Kev kho deg: |
Fusion bonded epoxy txheej / zinc thiab bitumen txheej |
|
Raws li cov neeg siv khoom xav tau |
|
|
kev kho mob sab hauv: |
Fusion bonded epoxy txheej / Cement hauv ob sab phlu |
|
Raws li cov neeg siv khoom xav tau |
|
|
Daim ntawv thov: |
Tsheb thauj mus los systems kav dej Lines Connect |
|
Dej khib nyiab systems yeeb nkab Kab Txuas |
|
|
Irrigation systems pipe Lines Connect |
Nta:

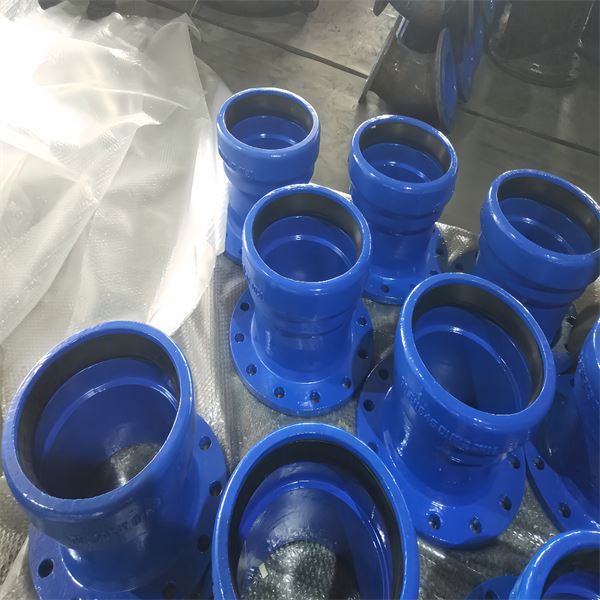

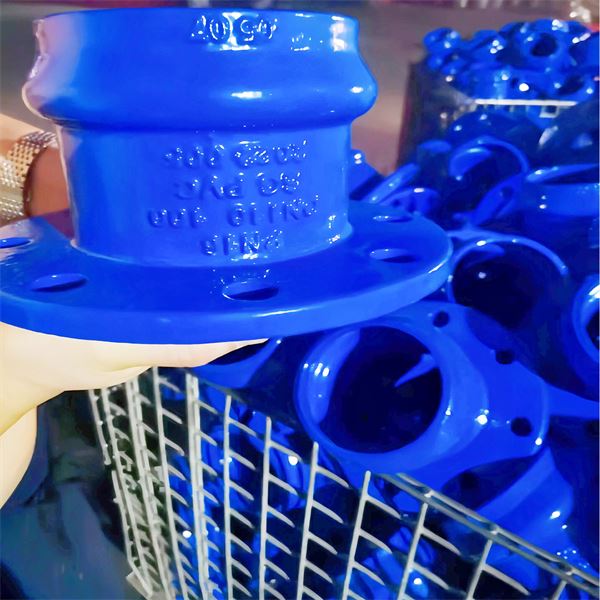

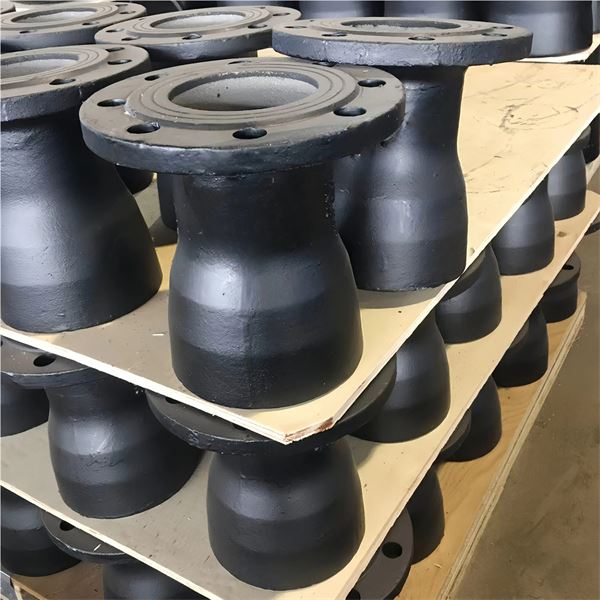

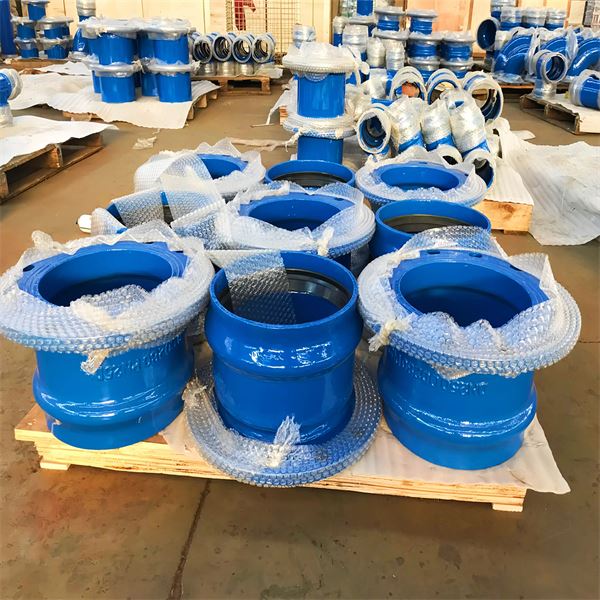

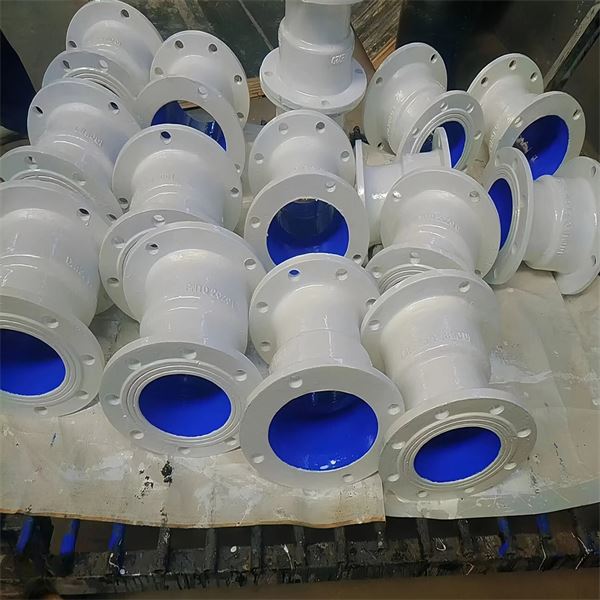

Ductile hlau flange sockets yog ib qho kev sib txuas ntawm cov yeeb nkab uas tsim los kom muaj kev ruaj ntseg ntawm cov kav dej, twj thiab li qub. Lub qhov (socket) flange no muaj lub ntsej muag tsa uas ua rau kev sib cuag nrog lub gasket, tsim kom muaj kev sib khi nruj ntawm ob lub kav dej, tiv thaiv kom tsis txhob xau thiab teeb meem siab.
1.DI Flange Socket yog tsim los muab kev ruaj ntseg kev sib txuas ntawm cov kav dej, twj, thiab li qub.
2.Siv flange sockets tso cai rau kev yooj yim disassembly thiab kev hloov kho ntawm cov kav dej tsis tas yuav tsum tau muab tag nrho lub cev tshem tawm lossis hloov.
3.Ductile Iron Flange Socket yog cov yeeb nkab haum siv rau cov yeeb nkab txuas. Nws cov khoom tseem ceeb yog cov hlau nplaum. Cov hlau muaj zog, siab tawv, hnav tsis kam thiab corrosion kuj, yog li nws yog dav siv nyob rau hauv ntau yam kav dej.
4.Cov qauv ntawm cov hlau flange socket accessories feem ntau muaj flange, qhov (socket) thiab sealing nto.
5.Lub ductile hlau flange qhov (socket) txuas nrog bolts.
6. Ductile hlau flange qhov (socket) muaj kev sib hloov zoo nrog lwm cov flange txuas uas ua tau raws li cov qauv qub, ua rau nws conve.
Hauv luv luv, ductile hlau flange sockets tau dhau los ua qhov kev xaiv zoo tshaj plaws rau ntau lub raj xa dej vim lawv lub zog siab, siab tawv, hnav tsis kam thiab corrosion kuj. Nws cov qauv muaj flange, qhov (socket) thiab sealing nto, thiab siv bolt kev twb kev txuas los xyuas kom meej qhov ruaj khov ntawm kev sib txuas. Tsis tas li ntawd, lub qhov (socket) hlau flange muaj qhov sib hloov tau zoo thiab tuaj yeem siv tau yooj yim nrog lwm cov flange connectors uas ua tau raws li cov qauv qub, ua kom yooj yim rau kev tshem tawm, hloov kho thiab kho cov kav dej.
Jintai cov kev pabcuam:
Jintai Lub Tuam Txhab muab cov khoom lag luam thiab kev pab tswv yim los pab cov neeg siv khoom nkag siab zoo dua lawv cov kev xav tau.
Cov kev pabcuam no suav nrog:
1. Ua tau raws li tus neeg xav tau kev pab: Muab cov khoom lag luam customized kom tau raws li cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom thiab txhim kho tus kheej thiab kev ua haujlwm ntawm cov kev pabcuam.
2. Kev sib koom tes ntev ntev: Cov qauv kev pabcuam zoo li no yuav pab tsim kom muaj kev sib raug zoo rau cov neeg siv khoom mus sij hawm ntev thiab ua rau cov neeg siv khoom muaj kev ntseeg siab thiab kev vam khom rau lub tuam txhab.
3. Kev tsim kho kom ruaj khov: Los ntawm cov khoom lag luam thiab cov kev pabcuam zoo, peb pab cov neeg siv khoom lag luam thiab cov haujlwm ua tiav kev txhim kho kom ruaj khov.
4. Flexibility: Muaj peev xwm teb thiab hloov kho sai rau cov neeg siv khoom tshwj xeeb xav tau lossis kev hloov pauv, tswj kev yoog raws thiab kev ua haujlwm ntawm cov kev pabcuam.
5. Kev Tswj Xyuas Khoom Muag: Txhawm rau txhawb nqa qhov project tsim khoom thiab kev ua haujlwm ntawm tus nqi, peb cov kev pabcuam txuas mus rau kev tswj xyuas cov khoom lag luam, los ntawm cov chaw cia khoom, xa khoom hauv zos, ntim khoom mus rau kev xa tawm txawv teb chaws. Nrog peb cov dav hlau thauj mus los thiab cov khoom lag luam hauv tsev, peb xyuas kom meej raws sijhawm thiab raug xa tawm ntawm cov khoom xa tuaj rau koj qhov project.
FAQ
Q: Dab tsi yog di socket flange?
Flange sockets yog tsim los muab kev ruaj ntseg kev sib txuas ntawm cov kav dej, twj, thiab li qub. Lub qhov (socket) flange yog ib qho tseem ceeb ntawm threaded, voj voog phaj uas tuaj yeem welded los yog bolted rau lwm flange. Lub qhov (socket) flange muaj lub ntsej muag tsa ntsej muag uas tuaj rau hauv kev sib cuag nrog lub gasket los tsim kom muaj kev sib khi nruj ntawm ob lub kav dej, uas yuav pab tiv thaiv kom tsis txhob muaj qhov xau lossis teeb meem nrog lub siab.
Q: Vim li cas thiaj siv di Ductile Iron Flange Socket?
Q: Dab tsi yog cov yam ntxwv ntawm cov hlau flange qhov (socket)?
Peb nkag siab tias cov neeg siv khoom tab tom nrhiav cov khoom zoo uas ua tau raws li lawv cov kev xav tau ntawm kev lag luam. Peb cov flange sockets yog tsim los ntawm cov ntaub ntawv hwm, thiab peb ua raws li cov txheej txheem kev ruaj ntseg nruj kom ntseeg tau tias txhua yam khoom peb tsim tau raws li cov qauv siab tshaj plaws. Nov yog qee qhov tseem ceeb ntawm peb cov flange sockets; Muaj durability, Flexibility, Precision Performance, Versatility, Easy Installation thiab lwm yam.
