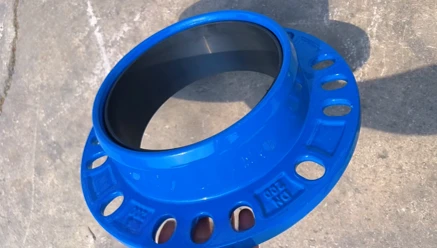

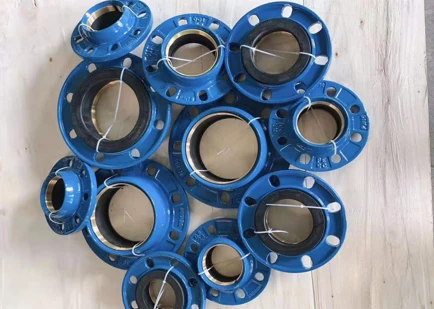

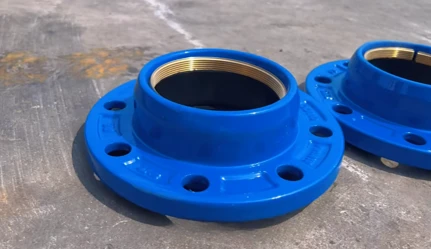

Quick Adapter rau PVC piav qhia
Quick Adapter Rau PVC Yeeb Nkab yog tsim tshwj xeeb rau kev sib txuas ntawm cov kav dej thiab cov kav dej, tshem tawm cov kev xav tau ntawm cov cement sib tsoo thiab muab cov tshuaj sai dua, huv si. Cias ntxig thiab ntswj lub flange resilient adapter kom ruaj ntseg xauv PVC kav rau hauv qhov chaw.
Specifications
| Txuj | ISO 2531, EN545 |
| Siab | PN10/NP16 |
| Khoom siv lub cev | Ductile hlau los yog cam khwb cia hlau |
| Txheej | FBE (fusion bonded epoxy txheej) lossis Epoxy painting, Rilsan (Nylon 11) |
| Gaskets | NBR lossis EPDM |
| Bolts thiab ceev | Carbon steel nrog galvanized zinc plated G4.8 / G8.8, SS304 / SS316 los yog Kub dipped |
| Pob | Ntoo rooj thiab txheej tiv thaiv. |
| Daim ntawv thov | Quick adapter yog siv los txuas PVC yeeb nkab. |
|
Qeb |
Yam khoom |
Specification |
|
Siv cov yeeb nkab |
Hom yeeb nkab |
PVC-U dej thiab cov kav dej |
|
Qhov ntau thiab tsawg |
DN20, DN25, DN32, DN40, DN50, DN63, DN75, DN90, DN110 |
|
|
Siv tau nruab nrab |
Cov dej haus, dej haus, dej nag, dej phwj tuaj hauv tsev, me me nruab nrab cov dej khib nyiab |
|
|
Hom kev sib txuas |
Quick snap haum, kua nplaum -dawb, tsis muaj sijhawm kho |
|
|
Kev thov ib puag ncig |
Sab hauv, sab nraum zoov, ntiav faus, resistant rau qaug zog acid thiab alkali |
Ntsiab nta
Tsis zoo li cov kav dej PVC ib txwm muaj- uas yuav tsum tau tshwj xeeb cov nplaum thiab kho lub sijhawm- lossis cov kav hlau uas xav tau vuam, cov kev ceev no - txuas PVC fittings feature snap- haum, xauv, lossis ntsia hlau- nruj tsim uas tshem tawm qhov xav tau ntawm cov khoom siv ntxiv.
01
Superior sealing kev ua tau zoo tiv thaiv kom tsis txhob muaj kev pheej hmoo
Cov khoom haum muaj kev sib xyaw ua ke, siab - zoo EPDM lossis silicone roj hmab foob. Ua los ntawm ib tug - txheej txheem molding, lub foob muaj superior elasticity thiab haum haum, nruj nreem kaw cov yeeb nkab kawg los tsim ib tug dual - sealing qauv.
02
Sturdy, ruaj siv nrog lub neej ua haujlwm ntev
Lub cev haum yog ua los ntawm siab -lub zog PVC, tus yam ntxwv los ntawm kev ceev thiab hardness. Nws muaj kev tiv thaiv zoo heev rau compression thiab kev cuam tshuam, ua kom nws tiv taus siab surges los ntawm cov kua hauv lub raj xa dej nrog rau cov kev cuam tshuam me me los ntawm kev tsim kho sab nraud lossis ib puag ncig, yam tsis muaj kev tawg lossis deformation.
03
Nruab
Xyuas kom meej tias qhov kawg ntawm cov kav dej PVC yuav tsum txuas nrog yog dej ntws, huv si, thiab tsis muaj khib nyiab thiab burrs.
Xaub lub nplhaib roj hmab sealing mus rau ib qho kawg ntawm cov yeeb nkab, tom qab ntawd ntxig cov yeeb nkab rau hauv lub qhov (socket) ntawm cov hlua hlau txuas. Qhov tob tob yuav tsum ua kom tau raws li qhov yuav tsum tau ua.
Teem lwm ib nrab ntawm cov coupling nrog cov seem uas twb tau muab tso rau hauv cov yeeb nkab, kom ntseeg tau tias cov yeeb nkab tau nkag mus rau qhov sib txuas.
Siv ib tug ciaj ntswj kom nruj lub fastening bolts ib tug los ntawm ib tug, xyuas kom meej tias lawv nruj nreem nyob rau hauv ib tug kab pheeb ces kaum kom faib lub zog sib npaug zos rau tag nrho cov qhov chaw ntawm lub pob qij txha.
Competitive Advantage
Txhim kho kev txhim kho kev ua tau zoo thiab txo nqi zog
Nrog rau kev sib koom ua ke ntawm cov yeeb nkab PVC, ib qho kev sib koom ua ke yuav tsum muaj tsawg kawg 15-30 feeb los ua kom tiav cov txheej txheem - ncua daim ntawv thov kua nplaum, koom ua ke, ruaj khov, thiab kho- thiab xav tau cov neeg ua haujlwm siab los saib xyuas kev sib koom ua ke thaum kho kom tsis txhob muaj cov yeeb nkab hloov. Hauv qhov sib piv, kev txhim kho ib qho PVC ceev - txuas txuas siv tsuas yog 1-3 feeb xwb; tsis muaj lub sijhawm kho yuav tsum tau ua, cia lub kaw lus muab tso rau hauv kev pabcuam tam sim tom qab kev teeb tsa.
Haum rau ntau yam xwm txheej nrog ntau hom kev lag luam
Tsis zoo li cov tsoos PVC fittings -uas yog txwv rau kev ua haujlwm ruaj khov thiab cov yeeb nkab tshwj xeeb -PVC ceev- txuas fittings muaj ntau yam zoo heev. Lawv tuaj yeem siv dav hauv cov dej hauv nroog thiab cov dej ntws, cov kav dej rau cov chaw nyob thiab cov tsev ua haujlwm, kev ua liaj ua teb, kev thauj dej tshuaj, dej phwj tuaj, thiab kev sib txuas ua haujlwm ib ntus.
Kev nyab xeeb thiab eco-tus phooj ywg, ua tau raws li cov qauv kev lag luam
Lub cev tseem ceeb ntawm cov khoom yog tsim los ntawm eco- phooj ywg PVC thiab engineering yas; nws tsis yog - tshuaj lom, tsis muaj ntxhiab, thiab ua raws li cov qauv kev nyiam huv rau kev xa dej. Nws yog qhov tsim nyog rau cov kav dej thauj cov kais dej, dej haus, thiab lwm yam dej tsis muaj paug rau cov dej tsis zoo.
Daim ntawv thov Scenario
