1. qhia
Ductile hlau flange adapters ua haujlwm tseem ceeb hauv cov khoom sib txuas hauv ntau lub raj xa dej thiab ua lub luag haujlwm tseem ceeb hauv ntau qhov chaw. Cov khoom siv rau lawv cov khoom siv, cov hlau nplaum, yog tau los ntawm kev ntxiv cov tshuaj nodulizing thiab inoculants rau cov hlau cam khwb cia, uas spheroidizes graphite. Cov txheej txheem tshwj xeeb no ua rau nws muaj zog, siab toughness, thiab zoo heev corrosion kuj. Lub zog tensile thiab yield zog ntawm cov hlau ductile yog qhov siab dua li cov hlau cam khwb cia, ua rau nws tuaj yeem tiv taus ntau dua thiab kev cuam tshuam quab yuam thiab tswj kev ruaj ntseg hauv kev ua haujlwm nyuaj, muab kev lav zoo rau kev sib txuas ntawm cov kav dej.
2.Technical Specifications
| Yam khoom | Parameters |
|---|---|
| Khoom siv lub cev | High toughness ductile hlau, ISO2531 tus qauv |
| Anti-Coating Txheej | Blue epoxy txheej sab hauv thiab sab nraud |
| Sealing Gasket | Ntau yam corrugated EPDM roj hmab gasket |
| Fasteners | Stainless hlau bolts nrog liab xov tiv thaiv lub kaus mom |
| Ua Haujlwm Siab | PN10, NP 16 |
| Siv tau hom yeeb nkab | PE, PVC-U, hlau, hlau, hlau kav dej |
| Qhov Loj | DN50 ~ DN1200 |
| Bolt Kev Npaj | DN50-DN300: 4 locking boltsDN350-DN1200: 6 thiab ntau locking bolts |
| Flange Tsim | Slotted hloov qhov, sib xws nrog GB thiab EU tus qauv flange khoom |
| Displacement Compensation | Absorb thermal expansion, av sib haum xeeb thiab me angular deflection |
| Kev teeb tsa | Vuam-dawb, nrawm ntawm- qhov chaw sib dhos |
|
Cov yam ntxwv ntawm cov khoom |
|
|

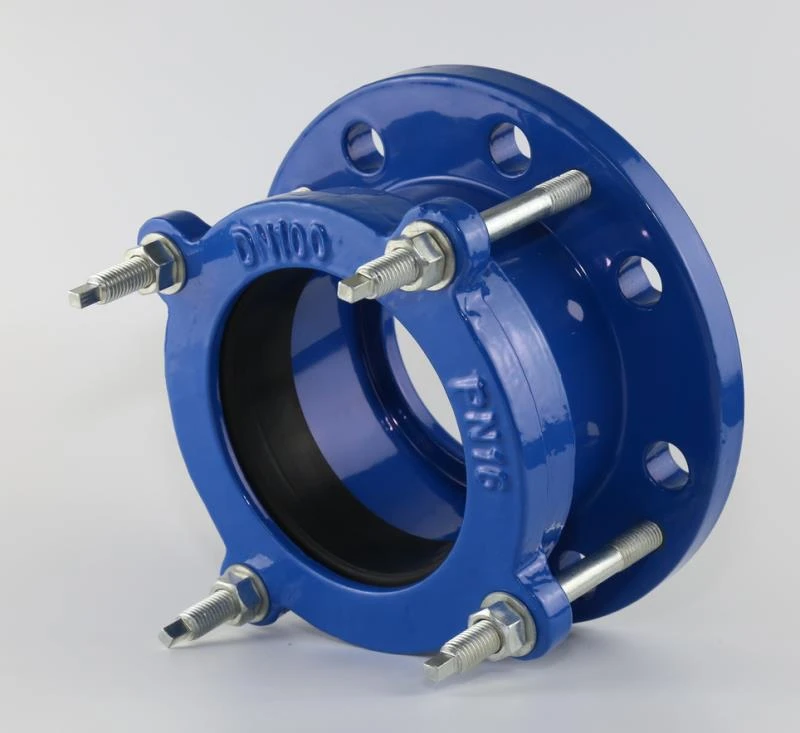

Ductile Hlau Main Lub Cev |
Ib qho -daim cam khwb cia hlau vaj tse uas muaj lub hauv paus sealing gasket thiab lub siab sab nraud-locking mechanism |
|
Integral Flange Base |
Hauv qab seem suav nrog elongated hloov qhov rau kev sib txuas rau flanged li qub los yog twj |
|
Stainless hlau Bolt los ua ke nrog liab tiv thaiv Caps |
Stainless hlau bolts thiab txiv ntseej nrog lub kaus mom liab tiv thaiv lub tsev kom nruj nyob ib ncig ntawm cov yeeb nkab |
|
Corrugated Wide -Range EPDM Gasket |
Sab hauv multi- txheej EPDM gasket muab lub foob hloov tau thiab haum rau ntau yam yeeb nkab diameters |
3. Cov yam ntxwv tseem ceeb
Ua los ntawm siab -tooj plaub hlau ua tau raws li ISO 2531 tus qauv, nws muaj kev cuam tshuam kev cuam tshuam, tsis yooj yim rau tawg, thiab ua kom ruaj khov siab- cov kabmob kev ua haujlwm.
Ib qho kawg nta lub qhov (socket) kev sib txuas tau sib xws nrog cov kav hlau txuas ncaj nraim, thaum lwm qhov yog flanged kawg uas txuas rau cov khoom flanged -xws li li qub, cov kav hlau, lossis cov twj tso kua mis - yog li ua kom muaj kev hloov pauv ntawm ntau hom kev sib txuas.
Features ib qho -daim cam khwb cia tsim nrog ib tug compact qauv thiab tsawg kawg nkaus installation qhov yuav tsum tau; tau tshaj tus qauv PN10 / PN16 pipeline network pressures.
4.Competitive Advantage
Yooj Yim Ntawm -site Mounting
Lub qhov (socket) -spigot sib koom txais kev sib txuas ncaj qha, thiab flange kawg yog kho los ntawm bolts yam tsis muaj vuam, ua rau lub sijhawm siv sijhawm luv.
Dependable Watertight Foob
Txheem EPDM gaskets haum rau cov dej txias thiab dej kub tawm los tiv thaiv kev xau.
Ua haujlwm ruaj khov -Xeb Kev Ua Haujlwm
Dual sab hauv thiab sab nrauv los tiv thaiv-corrosion txheej, sib xws nrog cov dej phwj hauv nroog thiab cov tshuaj lom neeg me me.
5. Showcase
6. Daim Ntawv Thov Scenarios
Cov kav dej hauv nroog
Secondary chav dej twj tso kua mis
Kev sib txuas rau cov twj tso kua mis thiab cov twj tso kua mis
Kev kho dua tshiab thiab kho thaum muaj xwm txheej ceev ntawm cov kav dej qub
Cov kav dej sib txuas nrog flange li qub, dej ntsuas thiab flowmeters
7.Standardized tag nrho - truckload logistics thiab tsheb thauj mus los
Ntim tseem ceeb heev rau cov hlau flange adapters. Tag nrho cov khoom yog nruj nreem qhwv hauv cov yas stretch zaj duab xis ua ntej xa khoom los thaiv cov dej noo thiab plua plav, tiv thaiv oxidation thiab kev sib kis thaum ua kom qhov chaw zoo thiab ua haujlwm ruaj khov.
Tom qab ntawd cov khoom raug thauj mus rau hauv cov rooj plaub ntoo kev cai nrog ua npuas ncauj thiab npuas qhwv. Xws li cov ntaub ntawv cushion nqus kev poob siab thiab kev co thaum lub sij hawm thauj mus los kom txo kev puas tsuaj, lav cov khoom tsis zoo rau cov neeg siv khoom.
