qhia

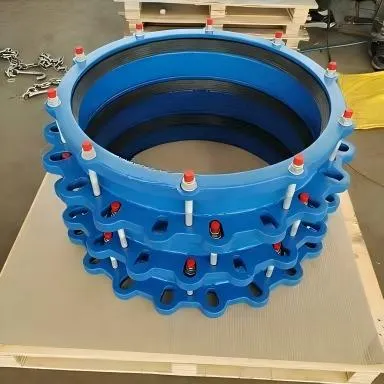

Cov hlau nplaum dismantling sib koom ua ke yog ib qho kev sib txuas yooj yim uas tsim los rau kev yooj yim installation thiab disassembly ntawm li qub, twj thiab kav dej. Nws tso cai rau kev hloov kho axial kom nqus cov kev ua haujlwm siab ntev thiab them nyiaj rau kev xa mus rau cov kav dej. Qhov kev sib koom ua kom yooj yim kho valve thiab tshem tawm yam tsis tau txiav cov kav dej, siv dav hauv cov dej xa dej thiab cov kav dej siab.
cov khoom
| Cheebtsam | Kev piav qhia |
|---|---|
| Main Lub Cev (Lub Cev Flange) | Ductile hlau QT450-10 siab-resistant lub ntsiab. Ib sab flange txuas mus rau li qub los yog cov khoom siv. Haum zawv zawg tes tsho thiab sealing gasket sab hauv, epoxy coated sab hauv thiab sab nraud. |
| Swb lub tes tsho | Lub tes tsho hlau muaj peev xwm ntawm axial txav. Muab kev kho kom haum rau cov kav dej ntev them nyiaj. |
| caj pas | Lub caj pas hlau rau compressing roj hmab gasket thiab locking sealing txoj hauj lwm. |
| Roj Hmab Gasket | EPDM / NBR roj hmab, lub hauv paus sealing tseem ceeb kom tsis txhob muaj qhov nruab nrab los ntawm zawv zawg clearance. |
| Txwv Bolt Assembly | Bolts, ceev thiab washers. Txwv qhov siab tshaj plaws zawv zawg mus ncig kom tsis txhob lub tes tsho dislodgement, thiab khi lub caj pas rau hauv qhov chaw. |
parameter
| Yam khoom | Specification |
|---|---|
| Khoom siv | Lub cev, caj pas, zawv zawg lub tes tsho: Ductile hlau QT450-10 / GGG50 |
| Roj Hmab Foob | EPDM / NBR |
| Cov qauv | ISO 2531, EN 545 |
| Kev ntsuas siab | PN10, NP 16 |
| Qhov Loj | DN50-DN2000 |
| Kev kho axial | Txheem 50-100 mm (vim li nominal txoj kab uas hla) |
| Txheej | Sab hauv thiab sab nraud epoxy hmoov txheej |
| Hom kev sib txuas | Flanged |
| Haum Nruab Nrab | Cov dej haus, dej hauv nroog, dej ua haujlwm |
| Ua haujlwm kub | 0-80 degree |
Lub ntsiab zoo
Li qub, twj tso kua mis thiab lwm yam khoom siv tuaj yeem sib sau ua ke thiab muab kev pabcuam yam tsis muaj cov yeeb nkab txiav, txo cov haujlwm ua haujlwm zoo heev.
Kev ntxhov siab:
Nws tuaj yeem nqus tau me ntsis thermal expansion thiab contraction ntawm cov kav xa dej los ntawm qhov kub thiab txias, lossis qhov hloov me ntsis los ntawm lub hauv paus kev daws teeb meem.
Txwv kev sib dhos bolt tswj zawv zawg mus ncig thiab tiv thaiv lub tes tsho dislodgement rau kev ua haujlwm nyab xeeb.
Flexible installation:
Ib qho kev sib txawv ntawm qhov sib txawv lossis qhov sib txawv tau tso cai ntawm cov yeeb nkab flanges.
Txheeb xyuas lub nplhaib sealing:
Ua ntej installation, xyuas kom meej tias qhov chaw ntawm lub nplhaib sealing yog huv si thiab tsis muaj kev puas tsuaj.
evenly tightened:
Thaum zawm bolts, siv lub zog hauv cov theem uas siv kab pheeb ces kaum kom ntseeg tau tias lub nplhaib sib khi yog sib npaug.
Kho qhov kev mus ncig:
Ceev faj kom tsis txhob dhau qhov chaw tsim khoom tau teev ntau qhov kev hloov kho siab tshaj plaws (Tag nrho Cov Kev Kho Kom Zoo Tshaj).
